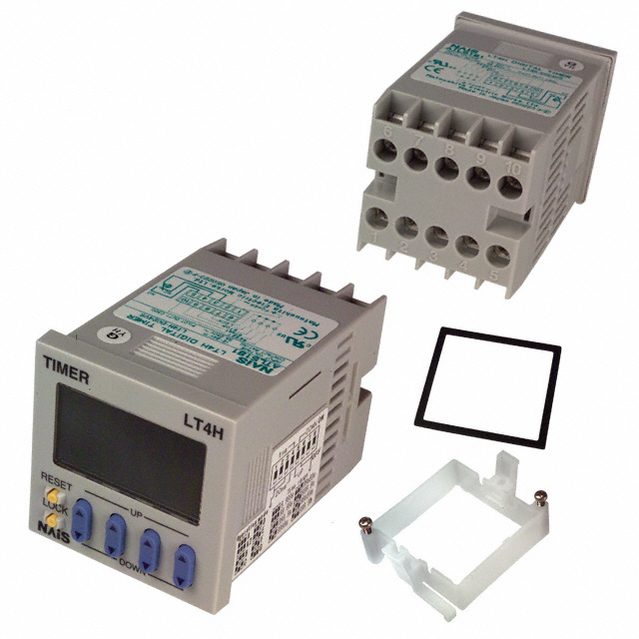

PANASONIC ELECTRIC WORKS LT4H-DC24VS 定时器, 多功能 12/24VDC
The is a Digital Timer with screw terminals, works in 8 operating modes and has a brand new bright 2-color back light LCD display. The easy-to-read screen in any location makes checking and setting procedures a cinch. It features seesaw buttons make operating the unit even easier than before, with a short body, it is easy to install in even narrow control panels and time ranges from 0.001second to 999.9hours.
- .
- Simple operation
- .
- Changeable panel cover, black/white
- .
- Bright and easy-to-read display
电源电压DC 24.0V max
接触器类型 Button
额定电压AC 24.0 V
额定电流 5 A
触点类型 SPDT
位数 4
触点额定电流 3.00 A
线圈电压 24.0 V
工作温度Max 55 ℃
工作温度Min -10 ℃
电源电压 12VDC ~ 24VDC
电源电压Max 24 VDC
安装方式 Screw Terminals, DIN Rail
宽度 48 mm
高度 48.0 mm
产品生命周期 Active
制造应用 Clock & Timing, 自动化与过程控制, 时钟与计时, Automation & Process Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
