开关稳压器 10A SIMPLE SWITCHER® Power Module with 36V Maximum Input Voltage 11-PFM -40 to 85
Provide the ability to switch between voltages by using this step down DC to DC converter and switching regulator module. It has a voltage of 0.8 to 6 V. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.
输出接口数 1
输出电压 0.8V ~ 6V
输出电流 10 A
调节输出数 1
输出功率 50 W
开关频率 350 kHz
拓扑结构 Buck
输入电压Max 36 V
输入电压Min 6 V
输出电流Max 10 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 6V ~ 36V
安装方式 Surface Mount
引脚数 11

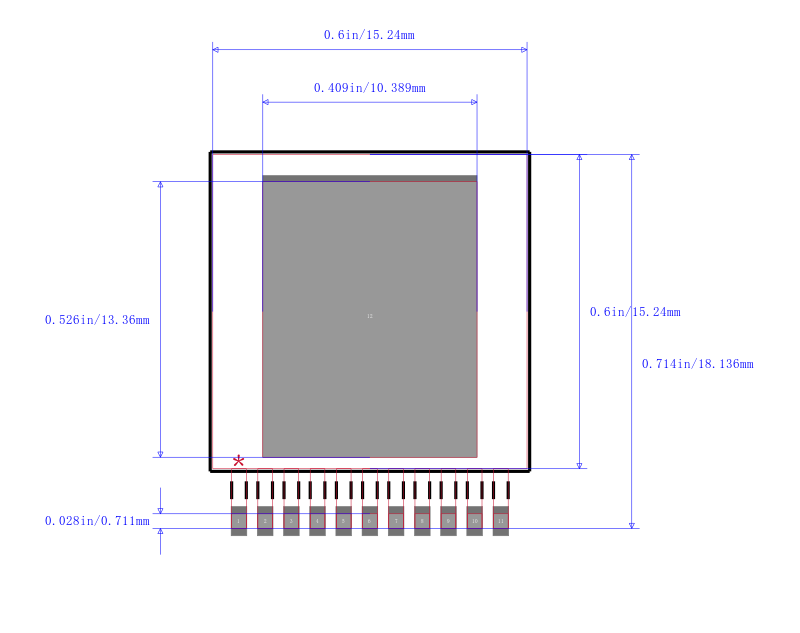

封装 TO-PMOD-11
高度 5.9 mm
封装 TO-PMOD-11
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LMZ13610TZE/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LMZ13610TZ/NOPB 德州仪器 | 完全替代 | LMZ13610TZE/NOPB和LMZ13610TZ/NOPB的区别 |
