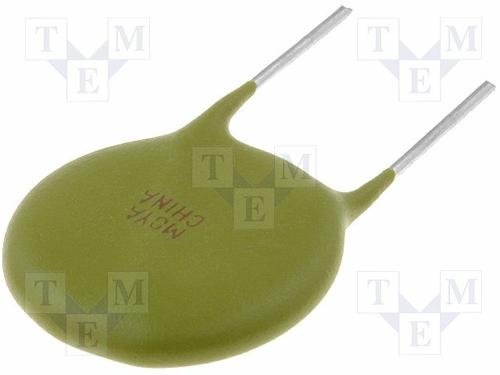

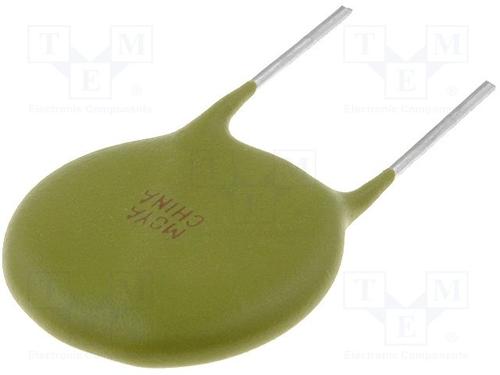

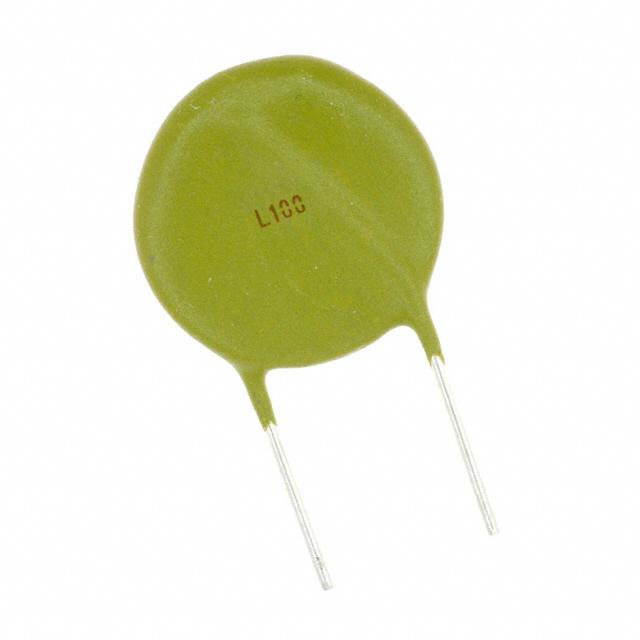

LVR100S

TE CONNECTIVITY / RAYCHEM  LVR100S  自复式保险丝, PTC, 240V, 10A, 径向引线

The is a 1A PolySwitch Resettable Device that offers low resistance and is compatibly sized with fuse solutions. It helps to protect electric motors and transformers from damage caused by mechanical overloads, overheating, stall, lost neutral and other potentially harmful conditions. This LVR series line-voltage product line of polymeric positive temperature coefficient PPTC device includes components that are rated for line voltage of 120 and 240VAC, for up to 2A of operating current at 20°C. Helps to protect against damage caused by both over-current surges and over-temperature faults. Unlike traditional fuses, PolySwitch device do not require replacement after a fault event. After power has been removed and the over-current condition eliminated, the circuit is restored to normal operating condition. Compared to bimetal breaker, This LVR device offers greater flexibility, longer lifespan and lower electromagnetic interference EMI.

.

Compatible with high-volume electronics assembly

.

Assist in meeting regulatory requirements

.

Higher voltage ratings allow use in new applications

.

Fast time-to-trip

.

Low resistance

.

UL94V-0 Flammability rating

.

Current rating from 50mA to 2A
