LTM8025IY#PBF参数规格_中文资料_数据手册PDF

LTM8025IY#PBF概述

LINEAR TECHNOLOGY LTM8025IY#PBF 芯片, 降压稳压器, 微模块, 36Vin, 3A, LGA-70

The is a step down µModule® Regulator Converter includes the switching controller, power switches, inductor and all support components. Operating over an input voltage range of 3.6 to 36V, the LTM8025 supports an output voltage range of 0.8 to 24V and a switching frequency range of 200kHz to 2.4MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design.

.: Complete step-down switch mode power supply

.: Parallelable for increased output current

.: Current mode control

LTM8025IY#PBF中文资料参数规格

技术参数

输出接口数 1

输出电压 0.8V ~ 24V

输出电流 3 A

针脚数 70

开关频率 775 kHz

开关电流 5 a

输入电压Max 36 V

输入电压Min 3.6 V

输出电压Max 24 V

输出电压Min 800 mV

输出电流Max 3 A

工作温度Max 125 ℃

工作温度Min -40 ℃

输入电压 12 V

封装参数

安装方式 Surface Mount

引脚数 70

封装 BGA-70

外形尺寸

封装 BGA-70

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Cut Tape CT

制造应用 Industrial, ITE（商业）, Automotive, Power Management, 工业, Automotive, Portable Devices, Industrial, Power Management, 电源管理, 车用, Portable Devices, 便携式器材

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

数据手册

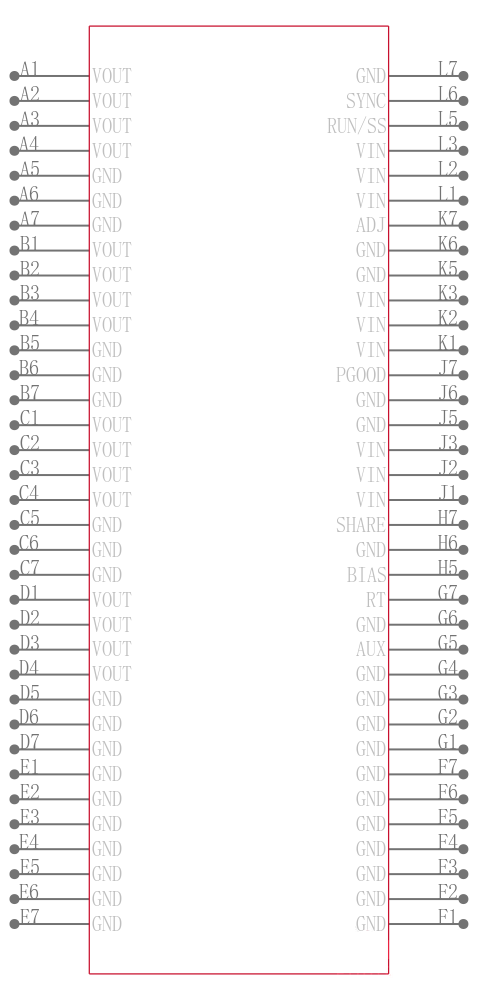

LTM8025IY#PBF引脚图与封装图
