LINEAR TECHNOLOGY LTM8057EY#PBF 直流-直流开关反激稳压器, 可调, 3.1 V-31 V输入, 2.5V-12V输出, 440mA输出, BGA-38
The is a 2kV AC-isolated flyback Micromodule® DC-to-DC Converter with switching controller, power switches, transformer and all support components. Operating over an input voltage range of 3.1 to 31V, the LTM8057 supports an output voltage range of 2.5 to 12V, set by a single resistor. Only output and input capacitors are needed to finish the design. Other components may be used to control the soft-start control and biasing.
- .
- Current-mode control
- .
- Programmable soft-start
- .
- User configurable undervoltage lockout
输出接口数 1
输出电压 2.5V ~ 12V
输出电流 440 mA

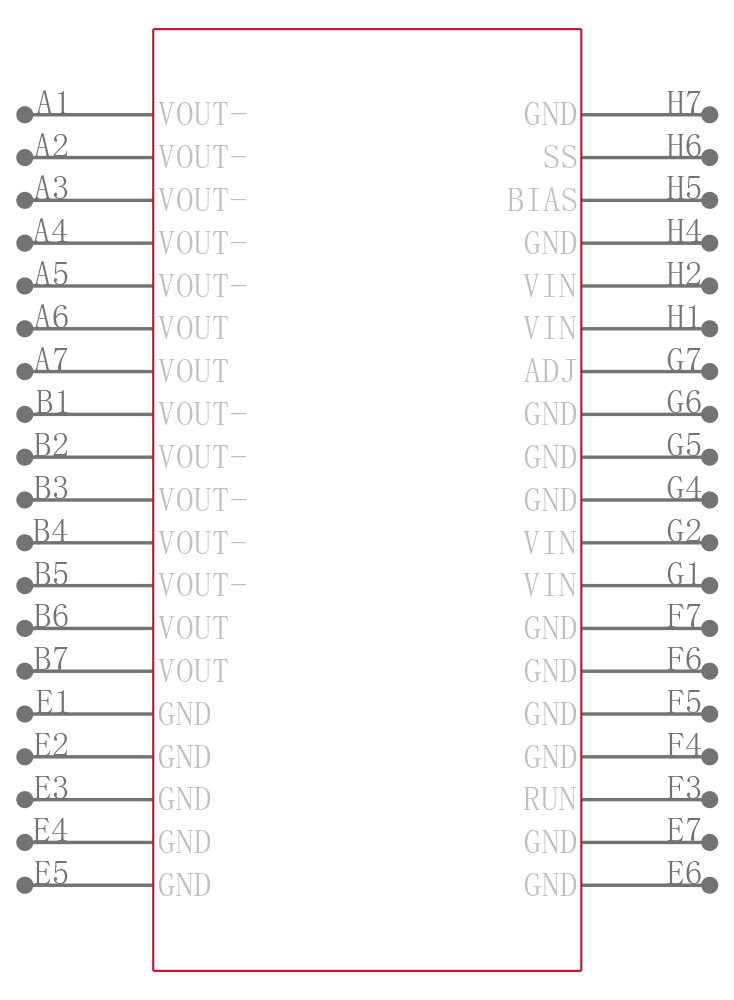

针脚数 38
隔离电压 3 kV
输入电压Max 31 V
输入电压Min 3.1 V
输出电压Max 12 V
输出电压Min 2.5 V
输出电流Max 440 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 3.1V ~ 31V
安装方式 Surface Mount
引脚数 38
封装 BGA-38
封装 BGA-38
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Test & Measurement, Industrial, 传感与仪器, ITE（商业）, 工业, 测试与测量, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTM8057EY#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTM8057MPY#PBF 凌力尔特 | 类似代替 | LTM8057EY#PBF和LTM8057MPY#PBF的区别 |
