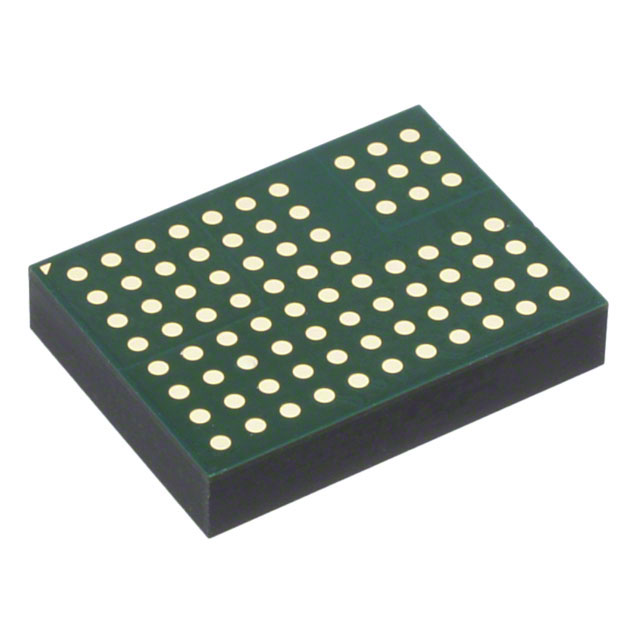

LINEAR TECHNOLOGY LTM8026EV#PBF 芯片, 降压稳压器, 36V输入, 5A, 恒压/恒流, 可调, 81LGA
The is a constant-voltage constant-current CVCC step-down µModule® Regulator includes the switching controller, power switches, inductor and support components. Operating over an input voltage range of 6 to 36V, the LTM8026 supports an output voltage range of 1.2 to 24V. CVCC operation allows the LTM8026 to accurately regulate its output current up to 5A over the entire output range. The output current can be set by a control voltage, a single resistor or a thermistor. Only resistors to set the output voltage and frequency and the bulk input and output filter capacitors are needed to finish the design.
- .
- Complete step-down switch mode power supply
- .
- Constant-voltage constant-current operation
- .
- Parallelable for increased output current, even from different voltage sources
- .
- Programmable soft-start
- .
- 100kHz to 1MHz Selectable switching frequency
输出接口数 1
输出电压 1.2V ~ 24V
输出电流 5 A
针脚数 81
静态电流 2 mA
开关频率 1 MHz
输入电压Max 36 V
输入电压Min 6 V
输出电压Max 24 V
输出电压Min 1.2 V
输出电流Max 5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 1.2.24 V
安装方式 Surface Mount
引脚数 81
封装 LGA-81
长度 11.25 mm
宽度 15 mm
高度 2.92 mm
封装 LGA-81
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Consumer Electronics, Industrial, Signal Processing, ITE（商业）, Consumer Electronics, Industrial, Signal Processing, 信号处理, 消费电子产品, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTM8026EV#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTM8026IV#PBF 凌力尔特 | 完全替代 | LTM8026EV#PBF和LTM8026IV#PBF的区别 |
LTM8026MPV#PBF 凌力尔特 | 类似代替 | LTM8026EV#PBF和LTM8026MPV#PBF的区别 |
