开关稳压器 36Vin, 5A 2-Quadrant CVCC Step-Down uModule Regulator
Adjust the voltage level of your devices with this step down DC to DC converter from . This converter"s single output can produce a current up to 5 A. It only needs a voltage of at least 6 V while not exceeding 36 V to effectively power your circuit. With an adjustable output that has a voltage of 1.2 to 24 V, this is power management at its best. A load regulation of 0.7%Typ and line regulation of 0.1%Typ is necessary for providing a constant voltage level at your output. Its switching regulator has a frequency of 100 to 1000 kHz. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C. This device is made with umodule technology.
输出接口数 1
输出电压 1.2V ~ 24V
输出电流 5 A
开关频率 1 MHz
输入电压Max 36 V
输入电压Min 6 V
输出电压Max 24 V
输出电压Min 1.2 V
输出电流Max 5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 6V ~ 36V
安装方式 Surface Mount

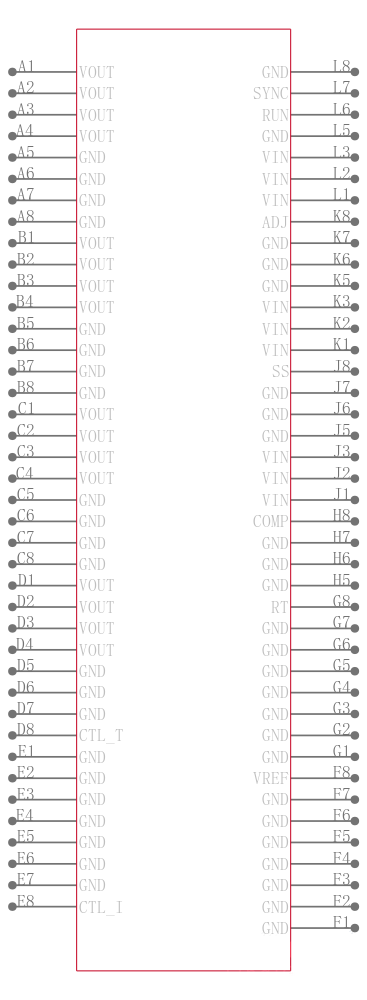

引脚数 81

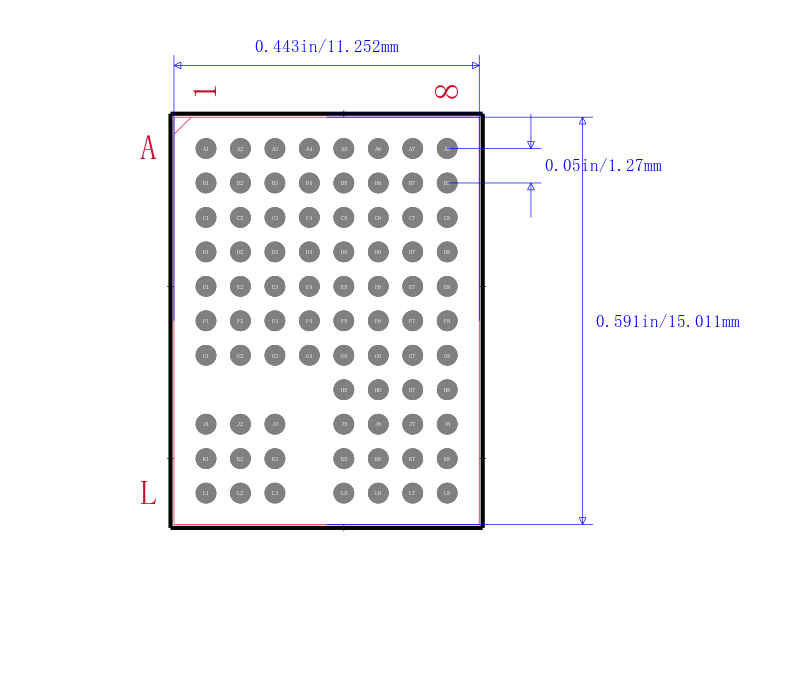

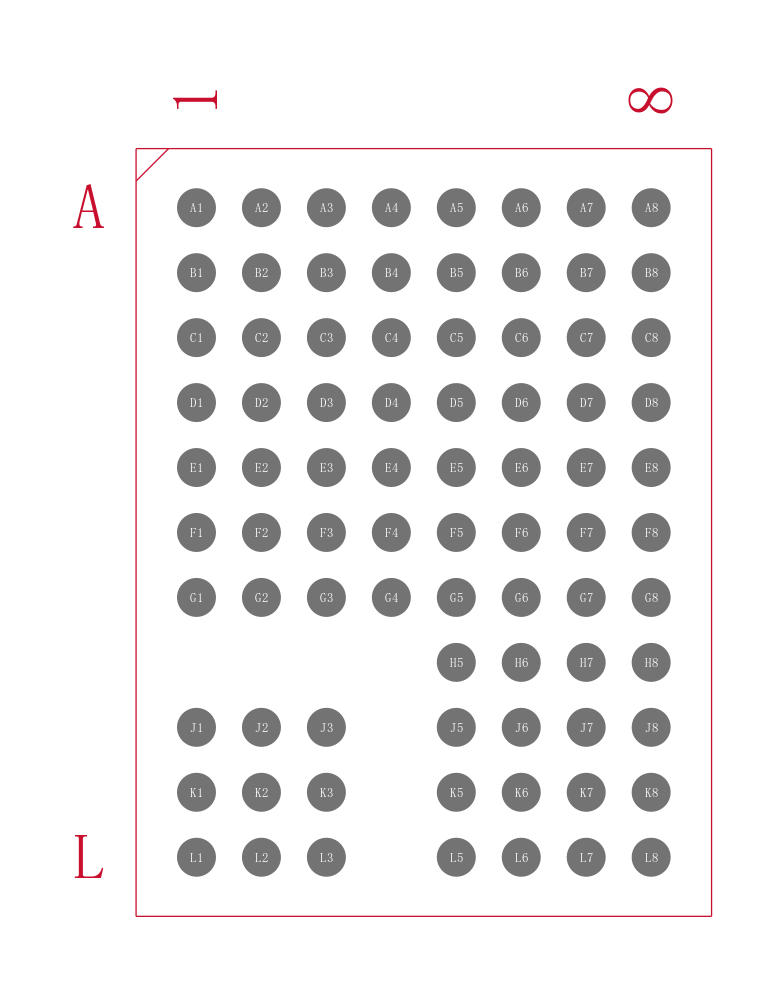

封装 LGA-81
封装 LGA-81
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
