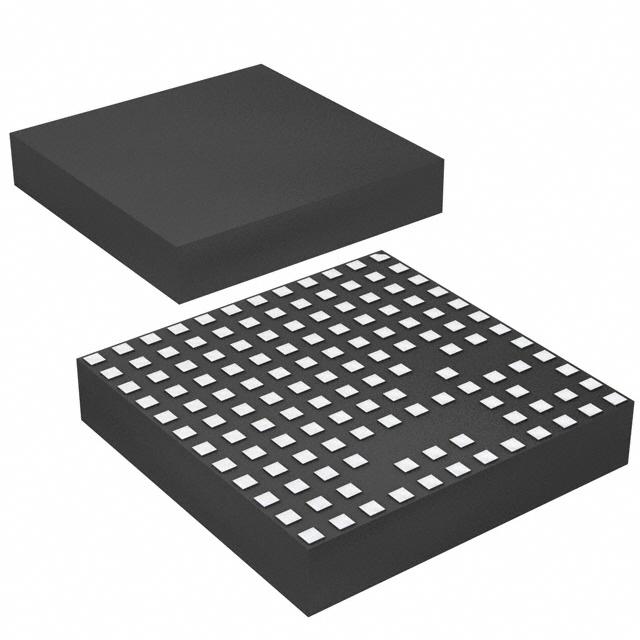

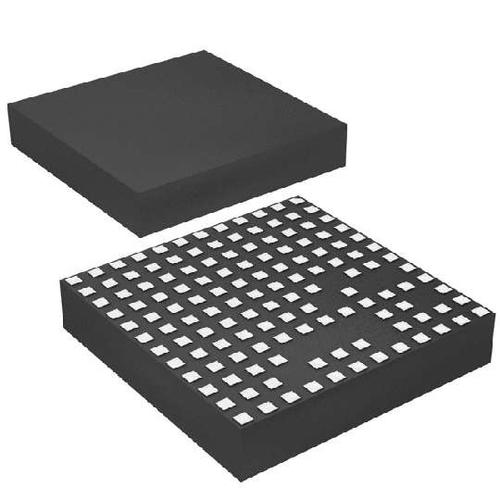

LINEAR TECHNOLOGY LTM4601AIV#PBF 芯片, 直流/直流转换器, 12A, 133LGA
Adjust the voltage level of your devices with this step down DC to DC converter from . This converter"s single output can produce a current up to 12 A. With a small input voltage of 4.5 V and a max of 20 V, this will supply sufficient power to your circuit. With an adjustable output that has a voltage of 0.6 to 5 V, this is power management at its best. By operating at a load regulation of 1% and line regulation of 0.3% you can provide a constant voltage at your output. This device has a typical switch current of 17 A. This converter is 95 % efficient. You can operate this at a switching frequency of 850Typ kHz. This component will be shipped in tray format. This device utilizes umodule technology. This converter has an operating temperature range of -40 °C to 85 °C.
频率 850 kHz
输出接口数 1
输出电压 0.6V ~ 5V
输出电流 12 A
针脚数 133
开关频率 1.25 MHz
开关电流 17 A
输入电压Max 20 V
输入电压Min 4.5 V
输出电压Max 5 V
输出电压Min 600 mV
输出电流Max 12 A
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 0.25 %
电源电压Max 20 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 133
封装 BLGA-133
高度 2.92 mm
封装 BLGA-133
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 ITE(商业)
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTM4601AIV#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTM4601AEV#PBF 凌力尔特 | 功能相似 | LTM4601AIV#PBF和LTM4601AEV#PBF的区别 |
