LTM4601AEY#PBF

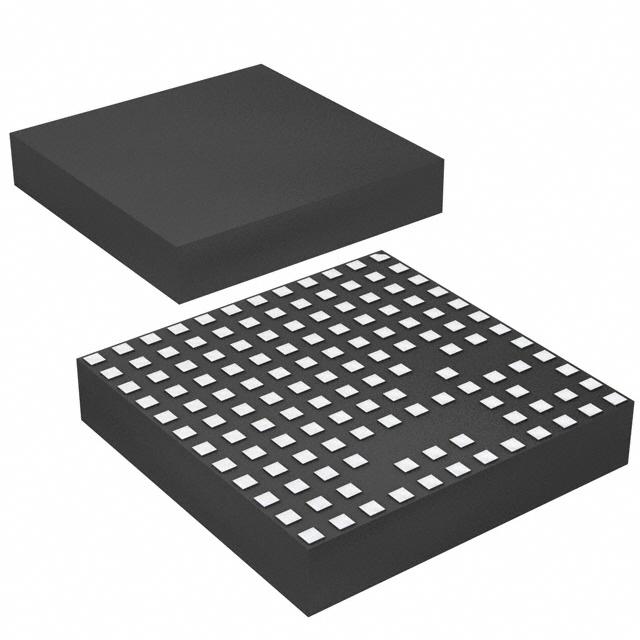

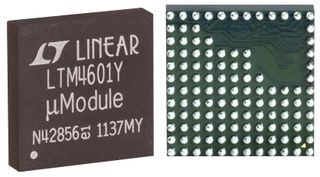

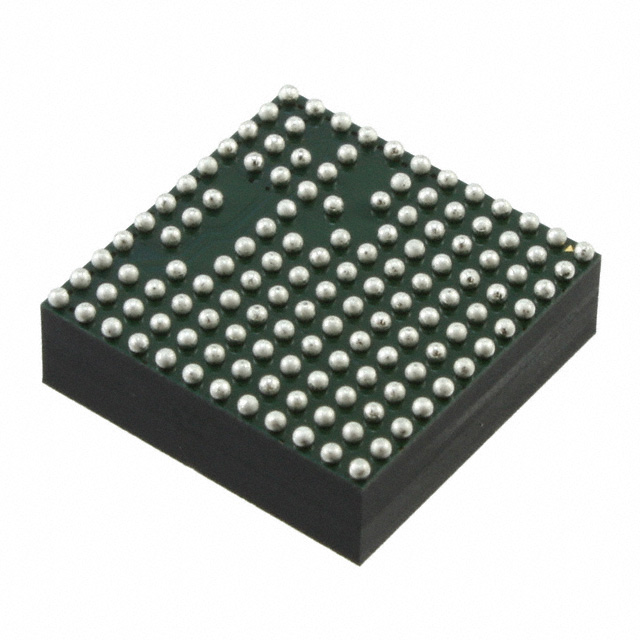

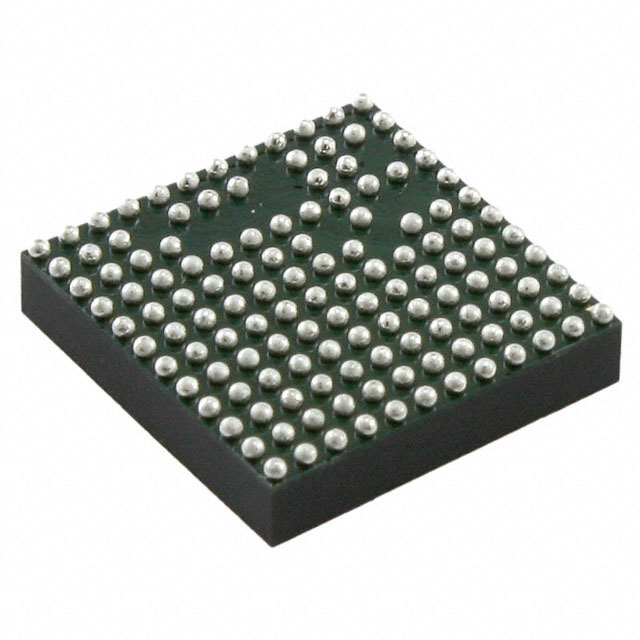

LINEAR TECHNOLOGY  LTM4601AEY#PBF  芯片, 直流/直流稳压器, 微模块, 12A, 133BGA

The is a complete step-down switch-mode DC/DC power supply µModule Regulator with onboard switching controller, MOSFETs, inductor and all support components. Operating over an input voltage range of 4.5 to 20V, the LTM4601A supports an output voltage range of 0.6 to 5V as well as output voltage tracking and margining. The high efficiency design delivers 12A continuous current. Only bulk input and output capacitors are needed to complete the design. The µModule regulator can be synchronized with an external clock for reducing undesirable frequency harmonics and allows PolyPhase® operation for high load currents. An onboard differential remote senses amplifier can be used to accurately regulate an output voltage independent of load current.

.

Output voltage tracking and margining

.

Redundant mounting pads for enhanced solder-joint strength

.

Parallel multiple µModules for current sharing differential remote sensing for precision regulation

.

PLL Frequency synchronization

.

Current foldback protection

.

UltraFast™ Transient response

.

Current mode control

.

Programmable soft-start

.

Output overvoltage protection

.

±1.5% Total DC error

.

Up to 95% efficiency at 5VIN, 3.3VOUT
