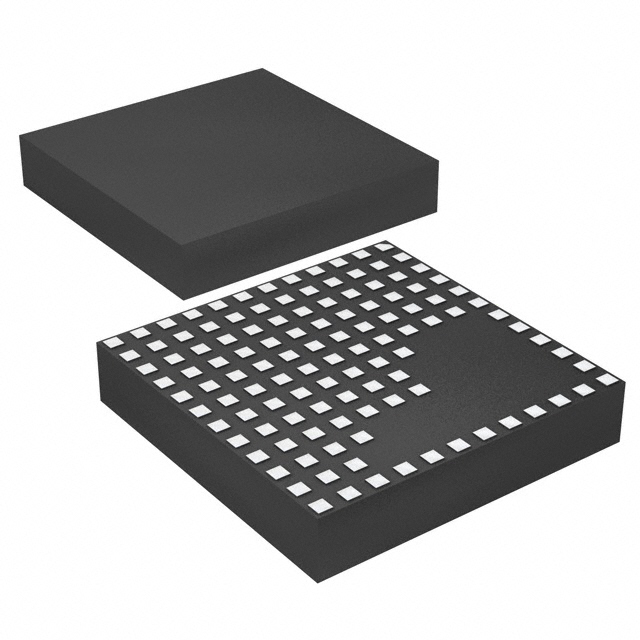

LINEAR TECHNOLOGY LTM4601IV#PBF 芯片, 直流/直流转换器, uMODULE, 12A, 118-LGA
The is a complete step-down switch mode DC/DC power supply µModule Regulator with onboard switching controller, MOSFETs, inductor and all support components. Operating over an input voltage range of 4.5 to 20V, the LTM4601 supports an output voltage range of 0.6 to 5V as well as output voltage tracking and margining. The high efficiency design delivers 12A continuous current. Only bulk input and output capacitors are needed to complete the design. The low profile and light weight package easily mounts in unused space on the back side of PC boards for high density point of load regulation. The µModule regulator can be synchronized with an external clock for reducing undesirable frequency harmonics and allows PolyPhase® operation for high load currents. A high switching frequency and adaptive on-time current mode architecture deliver a very fast transient response to line and load changes without sacrificing stability.
频率 850 kHz
电源电压DC 20.0 V, 4.50 V min
输出接口数 1
输出电压 0.6V ~ 5V
输出电流 12 A
针脚数 118
开关频率 1.25 MHz
开关电流 17 A
输入电压Max 20 V
输入电压Min 4.5 V
输出电压Max 5 V
输出电压Min 600 mV
输出电流Max 12 A
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 118

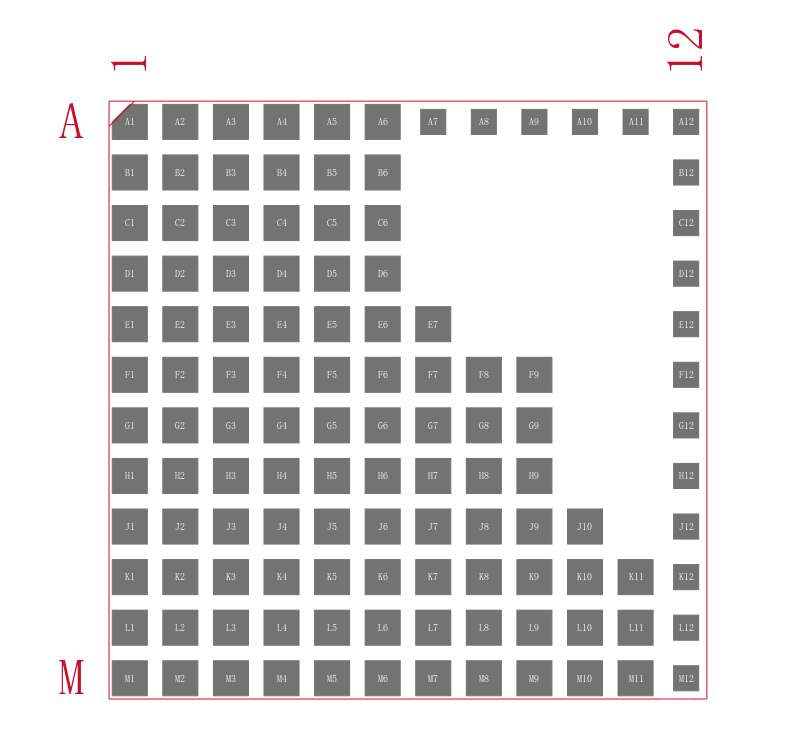

封装 LGA-118
长度 15.0 mm
宽度 15.0 mm
高度 2.82 mm
封装 LGA-118
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 工业, ITE(商业), 通信与网络, Communications & Networking, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTM4601IV#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTM4601EV#PBF 亚德诺 | 类似代替 | LTM4601IV#PBF和LTM4601EV#PBF的区别 |
