LTM4601IY-1

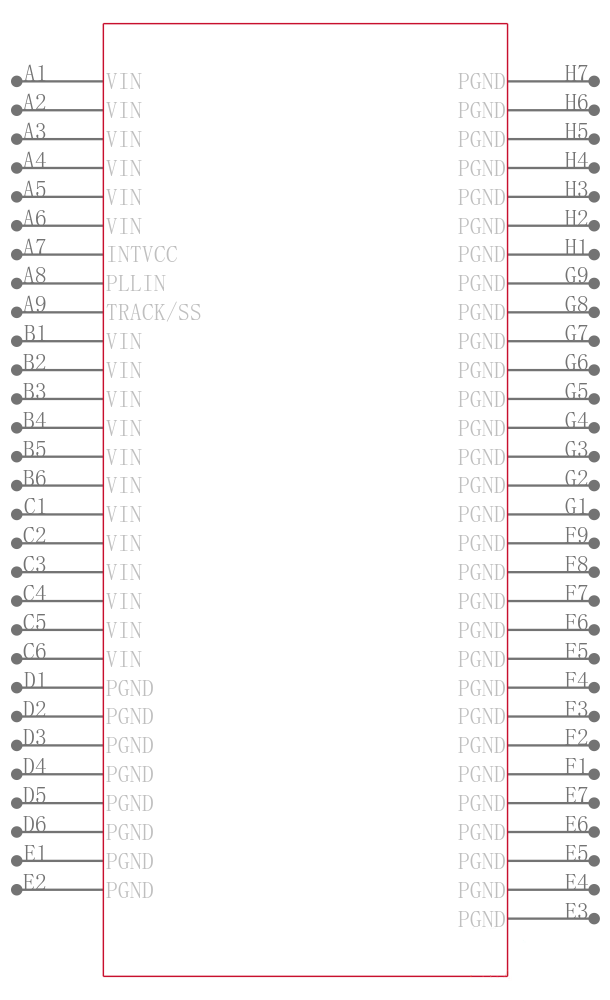

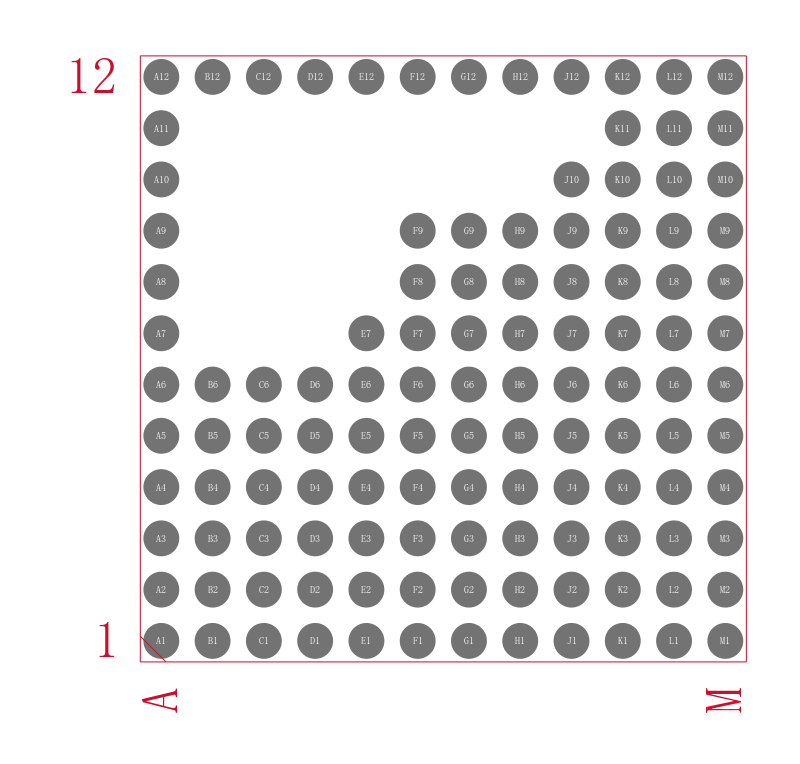

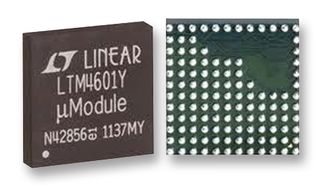

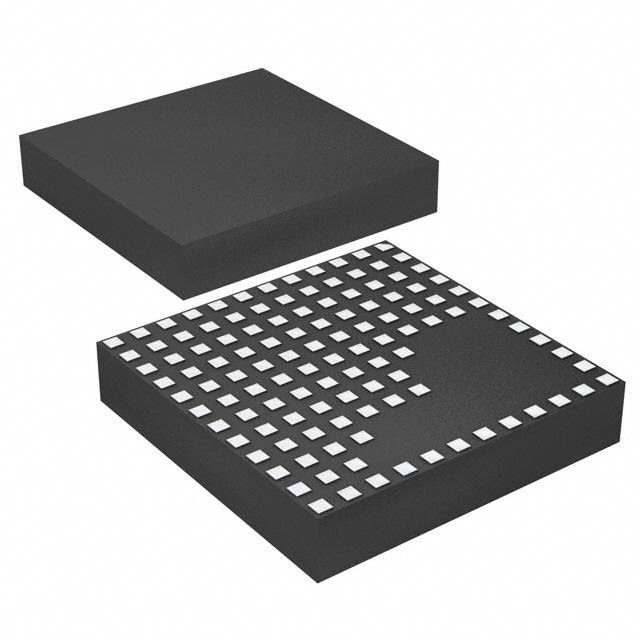

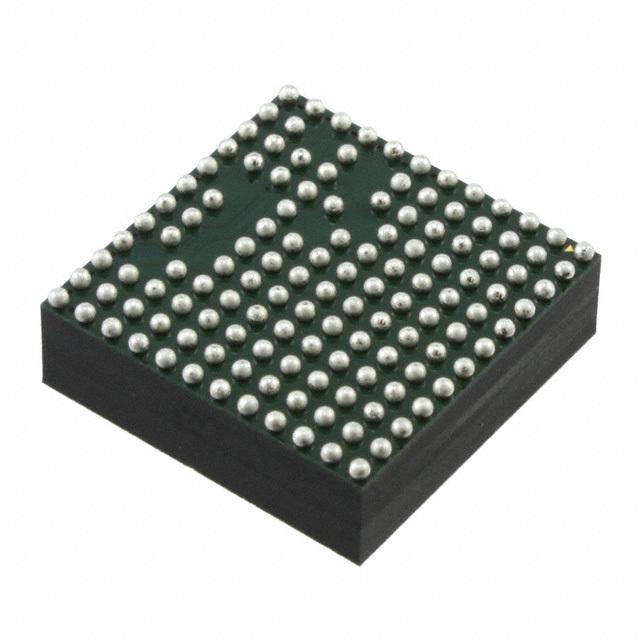

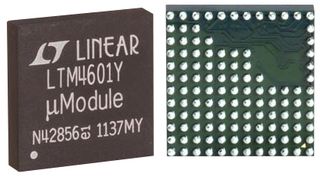

LINEAR TECHNOLOGY  LTM4601IY-1  芯片, 直流/直流转换器, 降压, 850KHZ, BGA-118

The is a 12A µModule regulator with PLL, output tracking and margining in 118 pin BGA package. This is a complete 12A step-down switch mode DC/DC power supply with onboard switching controller, MOSFETs, inductor and all support components. The high efficiency design delivers 12A continuous current 14A peak. Only bulk input and output capacitors are needed to complete the design. The low profile and light weight package easily mounts in unused space on the back side of PC boards for high density point of load regulation. The µModule regulator can be synchronized with an external clock for reducing undesirable frequency harmonics and allows PolyPhase operation for high load currents. A high switching frequency and adaptive on-time current mode architecture deliver a very fast transient response to line and load changes without sacrificing stability. It is used in telecom and networking equipment, servers and point of load regulation.

.

Input voltage range from 4.5V to 20V, output voltage range of 0.6V to 5V

.

Complete switch mode power supply, 12A DC typical, 14A peak output current

.

Parallel multiple µModule regulator for current sharing

.

Differential remote sensing for precision regulation

.

Operating temperature range from -40°C to 85°C

.

Current foldback protection disabled at start-up, PLL frequency synchronization, ±1.5% regulation

.

UltraFast transient response, current mode control

.

Up to 95% efficiency at 5VIN, 3.3VOUT

.

Programmable soft-start, output voltage tracking and margining

.

Output overvoltage protection
