LTM8046MPY#PBF

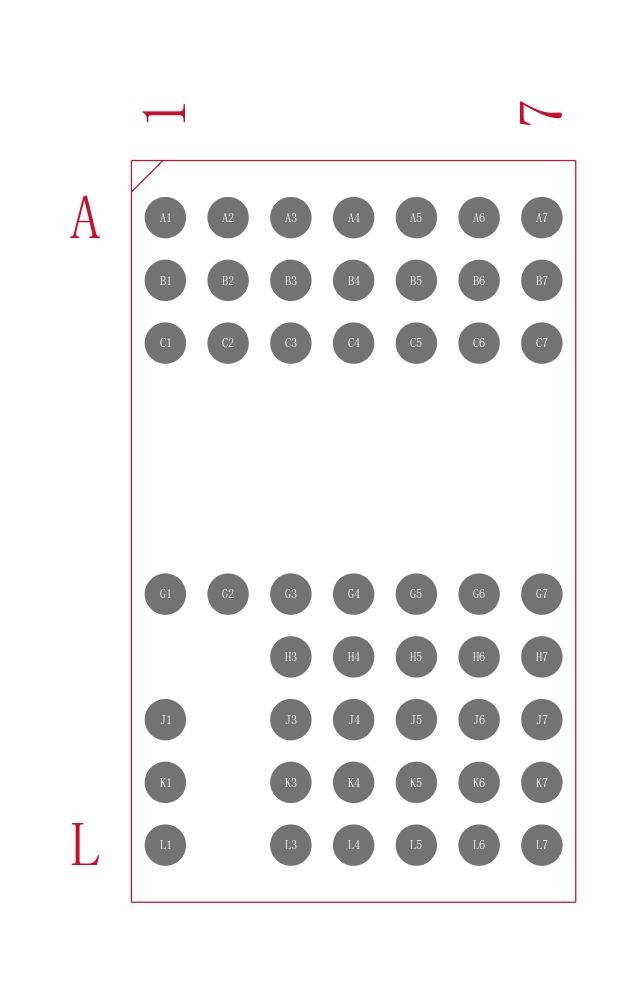

直流/直流POL转换器, 可调, 反激式, 1.8 V至12 V输出, 550 mA, LGA-51

The is an isolated fly-back DC/DC µModule® Converter has an isolation rating of 2kVAC. It includes the switching controller, power switches, transformer and all support components. Operating over an input voltage range of 3.1 to 31V, the LTM8046 supports an output voltage range of 1.8 to 12V, set by one resistor. Only output, input and bias capacitors are needed to finish the design. An optional capacitor can be used to set the soft-start period.

.

Current mode control

.

Programmable soft-start

.

User configurable undervoltage lockout
