LTM8054MPY#PBF

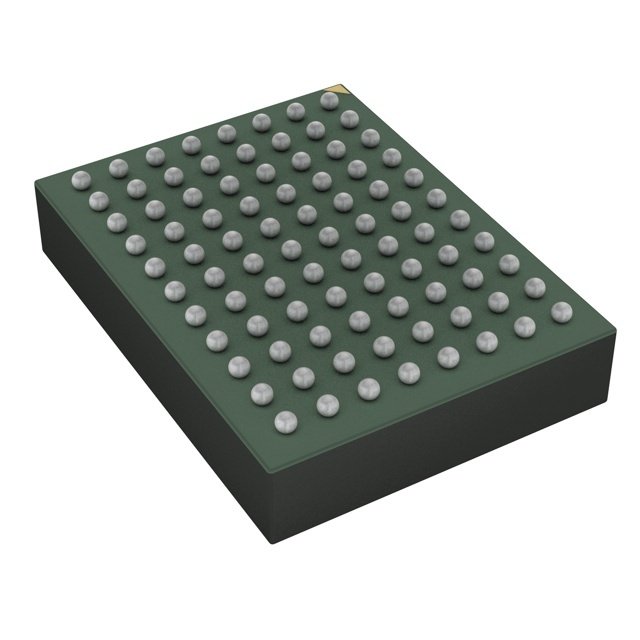

LINEAR TECHNOLOGY  LTM8054MPY#PBF  芯片, 直流/直流转换器, 降压-升压, 800KHZ, BGA-88

The is a standalone non isolated buck-boost µModule regulator with adjustable output in 88 pin BGA package. This complete buck-boost switch mode power supply includes switching controller, power switches, inductor and support components. A resistor to set switching frequency, resistor divider to set output voltage, input and output capacitors are needed to complete design. The input and output average current regulation can be implemented with just a few components. The SYNC input and CLKOUT output allow easy synchronization. The LTM8054 is equipped with thermal shutdown that inhibits power switching at high junction temperatures.

.

Wide output voltage range from 1.2V to 36V

.

Wide input voltage range from 5V to 36V

.

VIN can be greater than, equal to or less than VOUT

.

12V/1.8A output from 6 VIN, 12V/3.4A output from 12 VIN and 12V/5.4A output from 24 VIN

.

Selectable switching frequency from 100KHz to 800KHz

.

Efficiency is up to 94%

.

Adjustable input and output average current limits

.

Input and output current monitors

.

Synchronization from 200KHz to 700KHz

.

Operating temperature range from -55°C to 125°C
