LINEAR TECHNOLOGY LTM8033MPY#PBF 芯片, 降压转换器, 2.4MHZ, BGA-76
The is an ultralow noise EMC compatible µModule® Regulator Buck Converter designed to meet the radiated emissions requirements of EN55022. Conducted emission requirements can be met by adding standard filter components. It included the switching controller, power switches, inductor, filters and all support components. Operating over an input voltage range of 3.6 to 36V, the LTM8033 supports an output voltage range of 0.8 to 24V and a switching frequency range of 200kHz to 2.4MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design.
- .
- Complete step-down switch mode power supply
- .
- Current mode control
- .
- Programmable soft-start
输出接口数 1
输出电压 0.8V ~ 24V
输出电流 3 A

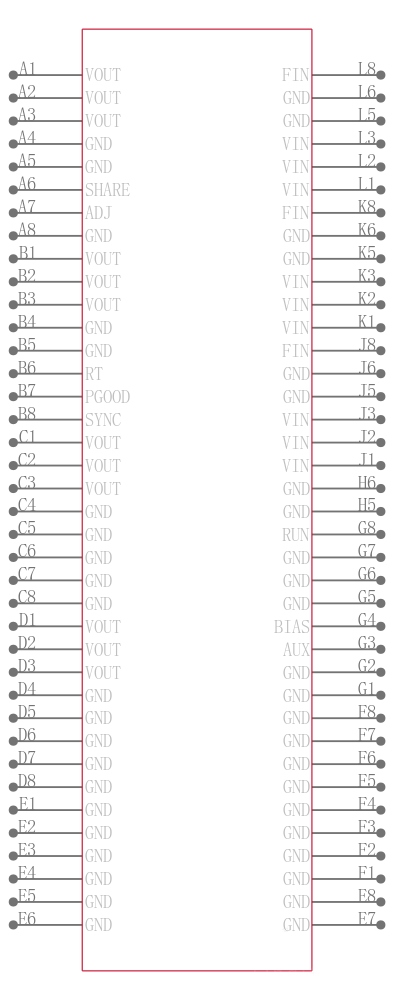

针脚数 76
开关频率 2.4 MHz
开关电流 4 a
输入电压Max 36 V
输入电压Min 3.6 V
输出电压Max 24 V
输出电压Min 800 mV
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 76

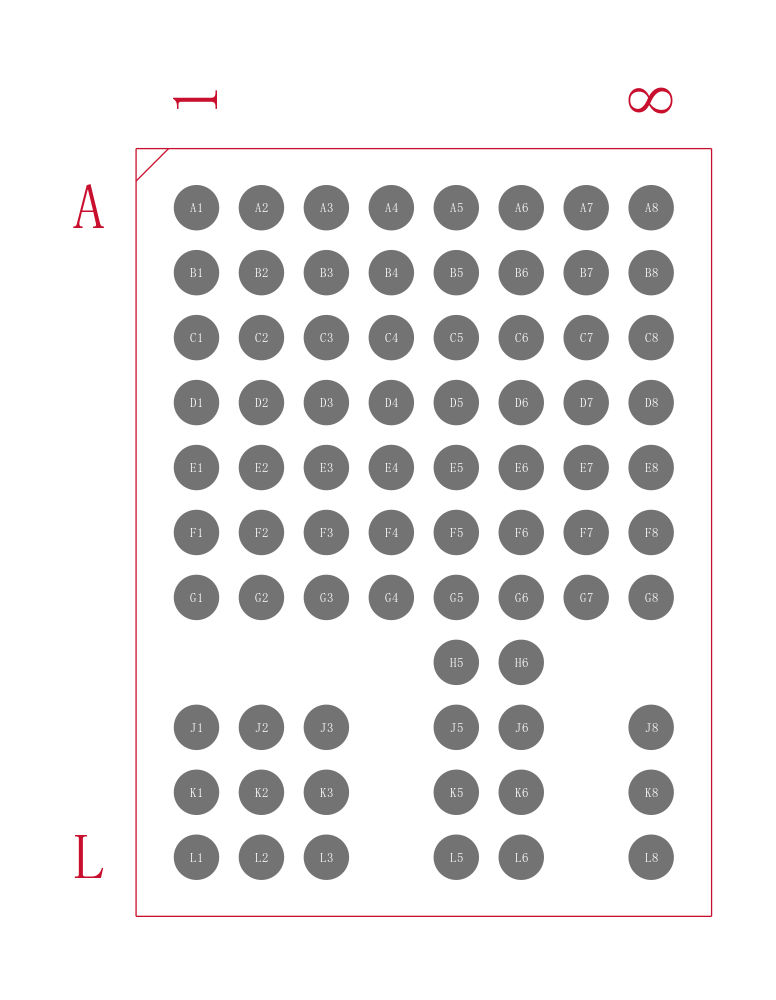

封装 BGA-76
封装 BGA-76
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, Industrial, Signal Processing, 电源管理, ITE（商业）, 便携式器材, Automotive, 信号处理, Portable Devices, 工业, 车用
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTM8033MPY#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTM8033EY#PBF 凌力尔特 | 类似代替 | LTM8033MPY#PBF和LTM8033EY#PBF的区别 |
LTM8033MPY 凌力尔特 | 类似代替 | LTM8033MPY#PBF和LTM8033MPY的区别 |
