L12J10RE概述

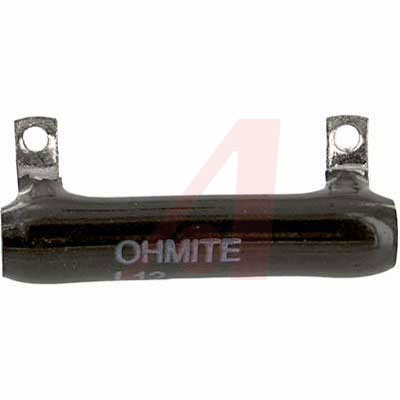

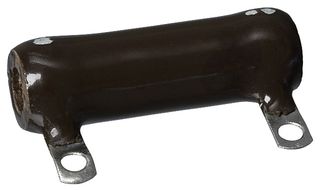

OHMITE  L12J10RE  功率电阻, 10欧姆 5%

The rugged vitreous enamel coating provides electrical insulation, excellent heat conduction, and is flame resistant. These wirewound resistors are wound on a high quality ceramic core with lug terminals suitable for soldering or sturdy bolt connection. For sturdy mounting, the hollow core permits fastening with spring-type brackets, thru bolts or thru bolts with slotted-steel brackets.
.
*Tolerance:** ±5%. Power rating based on 25°C free air rating. Mounting brackets, thru bolts and hardware sold separately.
L12J10RE中文资料参数规格
技术参数

额定电压DC 565 V

容差 ±5 %

额定功率 12 W

电阻 10 Ω

阻值偏差 ±5 %

额定电压 565 V

封装参数

安装方式 Lug

引脚数 2

封装 Radial, Tubular

外形尺寸

长度 44.4 mm

宽度 7.94 mm

封装 Radial, Tubular

物理参数

工作温度 -55℃ ~ 350℃

温度系数 ±400 ppm/℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8533210080

数据手册

在线购买L12J10RE
型号: L12J10RE
制造商: Ohmite
描述:OHMITE  L12J10RE  功率电阻, 10欧姆 5%
