L25J3K0

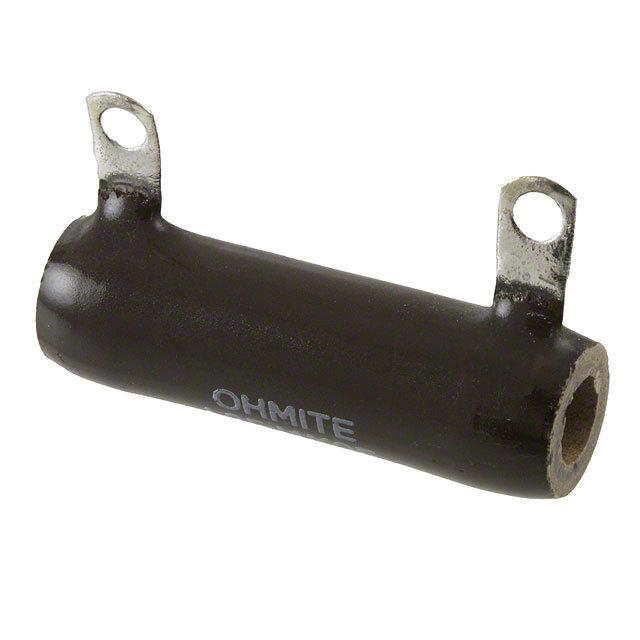

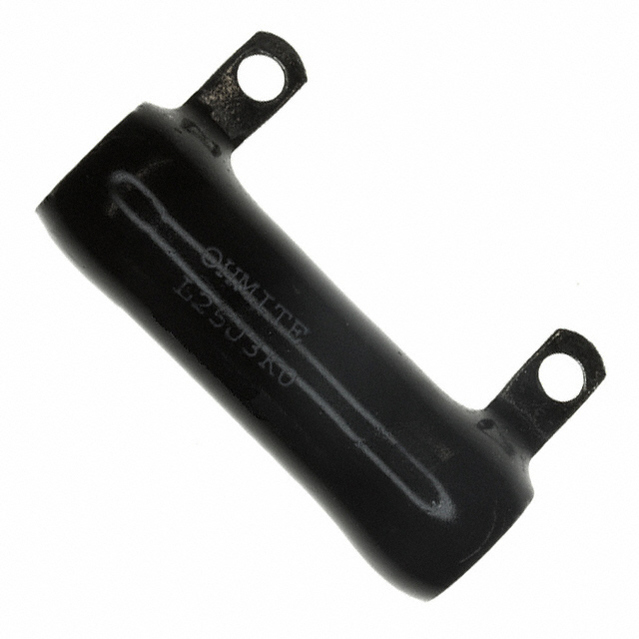

OHMITE L25J3K0 Resistor, Wirewound, 3KΩ, 25W, 625V, ± 5%, L25 Series, Wirewound

The rugged vitreous enamel coating provides electrical insulation, excellent heat conduction, and is flame resistant. These wirewound resistors are wound on a high quality ceramic core with lug terminals suitable for soldering or sturdy bolt connection. For sturdy mounting, the hollow core permits fastening with spring-type brackets, thru bolts or thru bolts with slotted-steel brackets.

.

*Tolerance:** ±5%. Power rating based on 25°C free air rating. Mounting brackets, thru bolts and hardware sold separately.
