L100J1K0E

OHMITE  L100J1K0E.  功率电阻, 1千欧 5% 100W

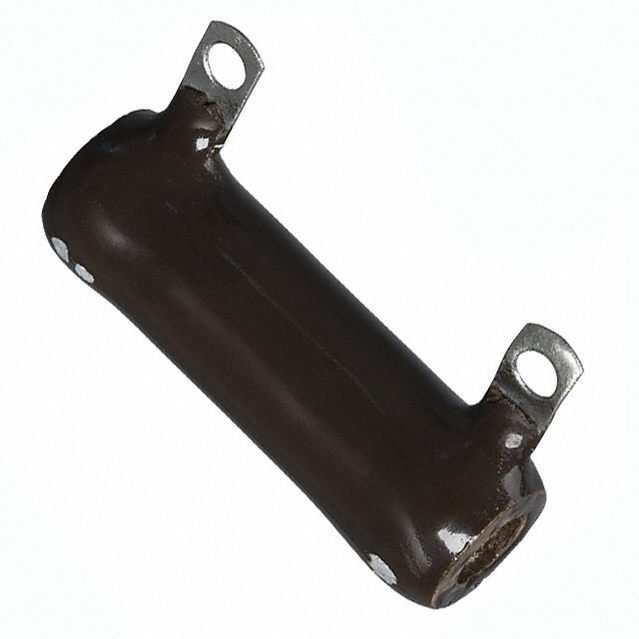

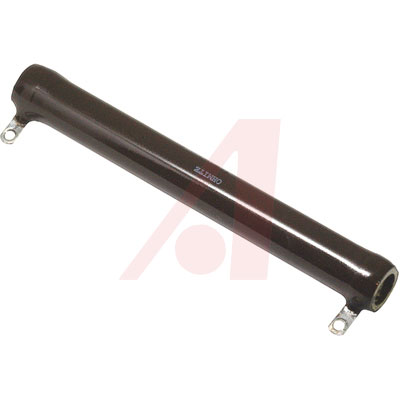

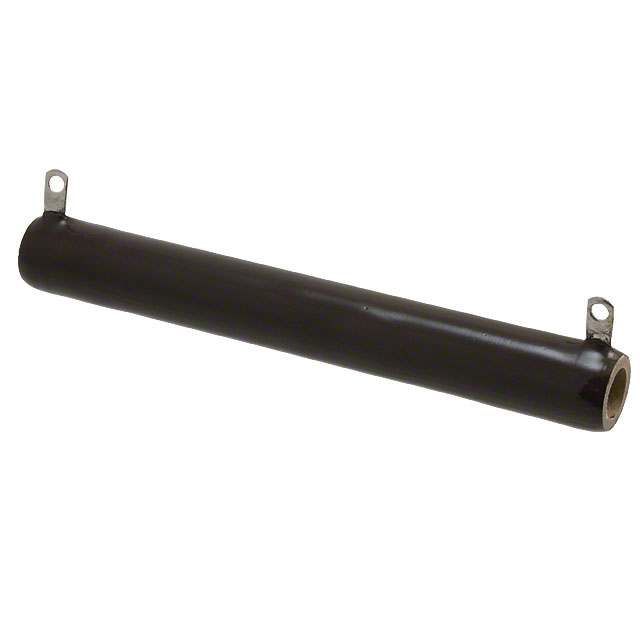

The is a Fixed Resistor with lug terminals suitable for soldering or sturdy bolt connection. When secure mounting is required, the hollow core of these resistors permit fastening with spring-type brackets, thru bolts or thru bolts with slotted-steel brackets. Power rating of 100W and temperature coefficient of ±260ppm/°C.

.

Terminals suitable for soldering or bolt connection

.

High wattage applications

.

Rugged lead free vitreous enamel coating

.

Flame resistant coating

.

All-welded construction

.

Tubular ceramic core

.

1000V Dielectric withstanding voltage
