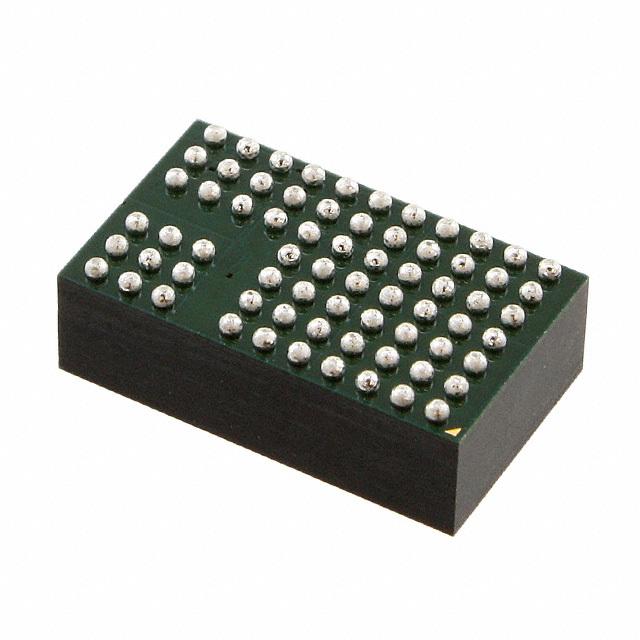

LINEAR TECHNOLOGY LTM8025MPY#PBF 芯片, 降压稳压器, 微模块, 36Vin, 3A, BGA-70
The is a step down µModule® Regulator Converter includes the switching controller, power switches, inductor and all support components. Operating over an input voltage range of 3.6 to 36V, the LTM8025 supports an output voltage range of 0.8 to 24V and a switching frequency range of 200kHz to 2.4MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design.
- .
- Complete step-down switch mode power supply
- .
- Parallelable for increased output current
- .
- Current mode control
输出接口数 1
输出电压 0.8V ~ 24V
输出电流 3 A

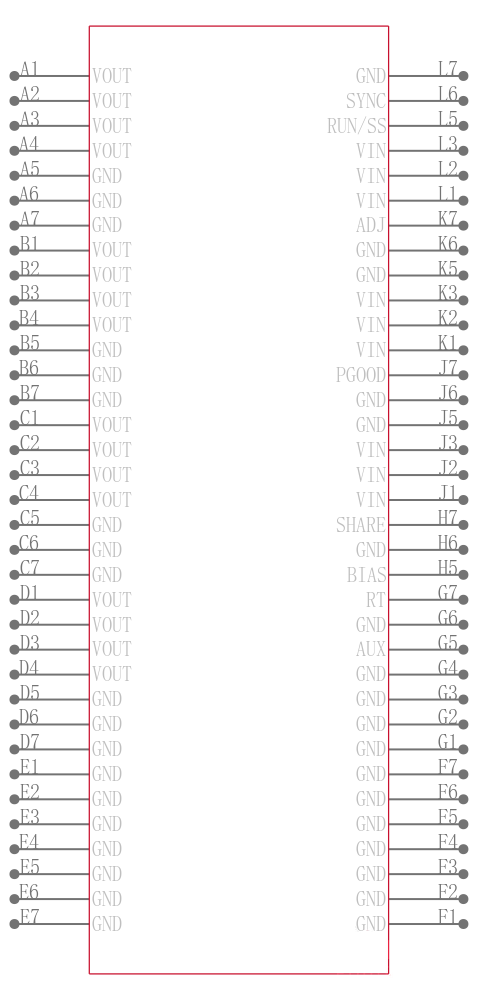

针脚数 70
开关频率 775 kHz
输入电压Max 36 V
输入电压Min 3.6 V
输出电压Max 24 V
输出电压Min 800 mV
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -55 ℃
输入电压 6V ~ 36V
安装方式 Surface Mount
引脚数 70

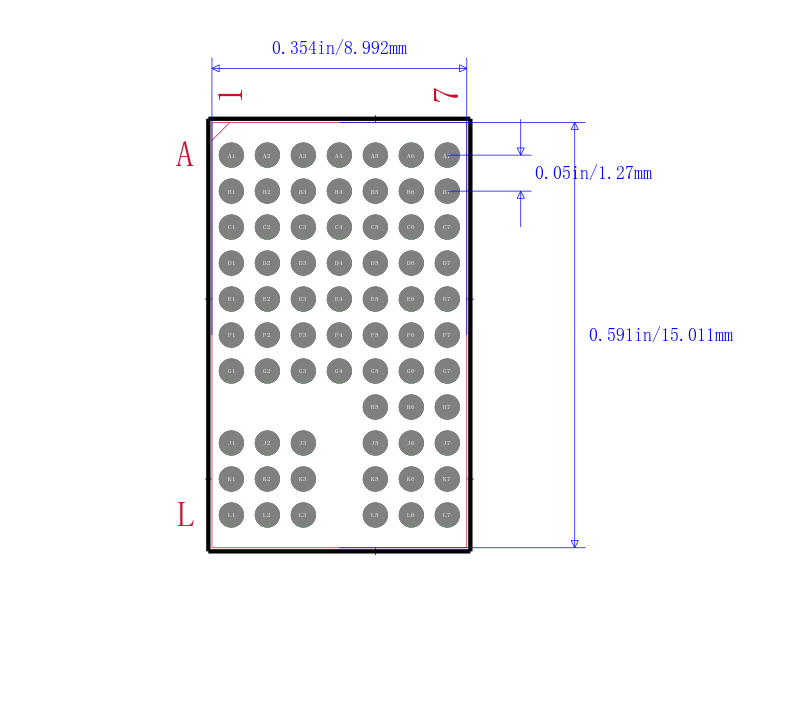

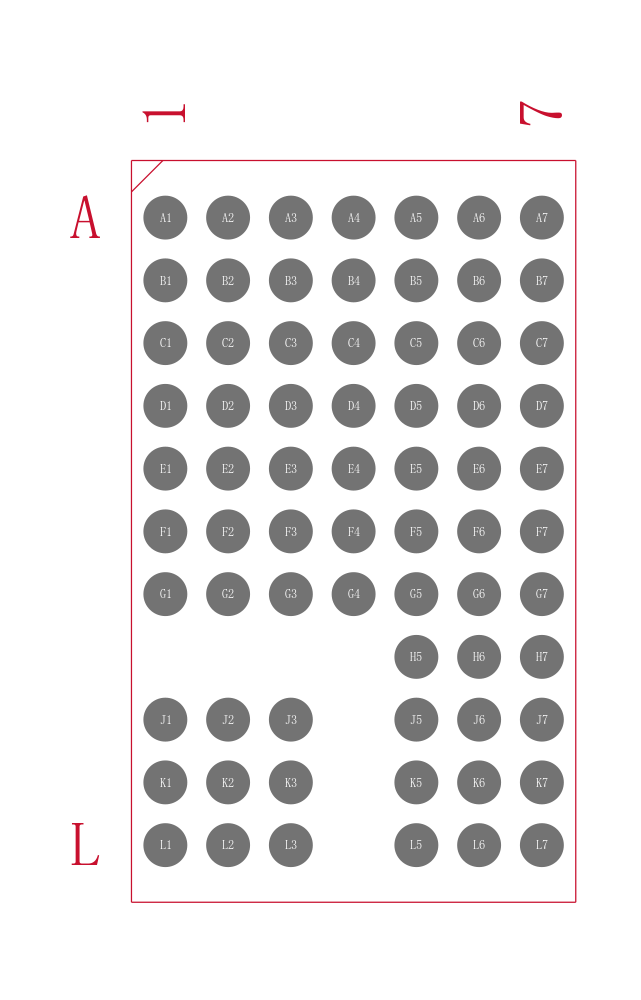

封装 BGA-70
封装 BGA-70
工作温度 -55℃ ~ 125℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Power Management, Portable Devices, Industrial, ITE（商业）, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTM8025MPY#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTM8025EY#PBF 凌力尔特 | 类似代替 | LTM8025MPY#PBF和LTM8025EY#PBF的区别 |
LTM8025IY#PBF 凌力尔特 | 类似代替 | LTM8025MPY#PBF和LTM8025IY#PBF的区别 |
