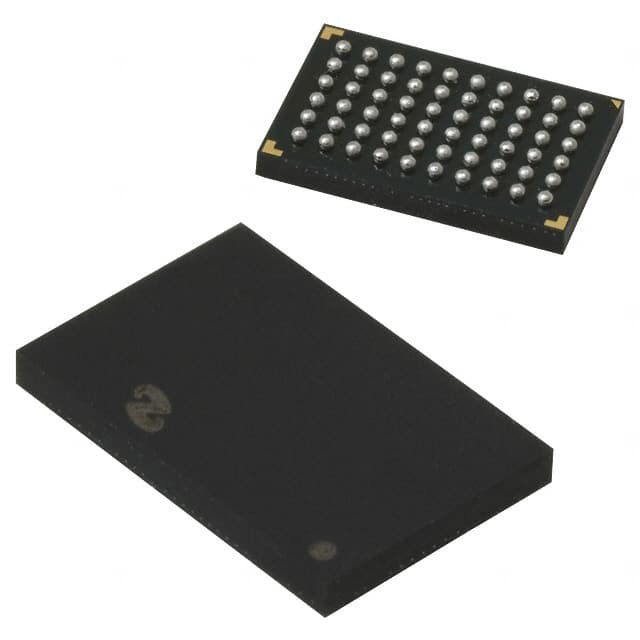

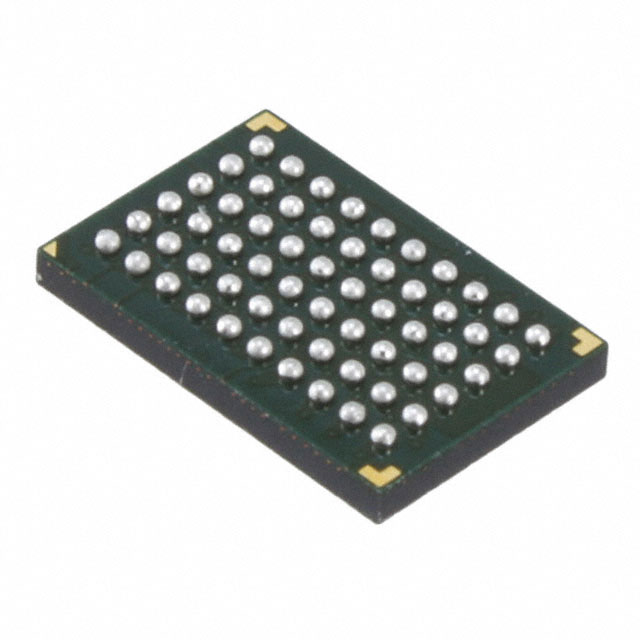

LMX9830SM/NOPB

Bluetooth Class II 2.75V 0.704Mbps 60Pin FBGA Tray

is an Bluetooth serial port module. It is a highly integrated Bluetooth 2.0 baseband controller and 2.4GHz radio combined to form a complete small form factor 6.1mm x 9.1mm x 1.2mm Bluetooth node. All hardware and firmware is included to provide a complete solution from antenna through the complete lower and upper layers of the Bluetooth stack up for the application including the generic access profile GAP, service discovery application profile SDAP and the serial port profile SPP. The module includes a configurable service database to fulfil service requests for additional profiles on the host. Based on National"s CompactRISC 16bit processor architecture and digital smart radio technology, The LMX9830 is optimised to handle the data and link management processing requirements of a Bluetooth node.

.

Compliant with the Bluetooth 2.0 Core Specification

.

Better than -80dbm input sensitivity

.

Class 2 operation

.

Low power consumption

.

Implemented in 0.18µm CMOS technology

.

RF includes antenna filter and switch on-chip

.

Baseband and Link Management processors

.

Support for up to 921.6k baud rate
