射频收发器 NRND use CC2564MODACMOG
The Texas Instruments LMX9830 _Bluetooth_ Serial Port module is a highly integrated _Bluetooth_ 2.0 baseband controller and 2.4-GHz radio, combined to form a complete small form factor 6.1 mm × 9.1 mm × 1.2 mm _Bluetooth_ node.
All hardware and firmware is included to provide a complete solution from antenna through the complete lower and upper layers of the _Bluetooth_ stack, up to the application including the Generic Access Profile GAP, the Service Discovery Application Profile SDAP, and the Serial Port Profile SPP. The module includes a configurable service database to fulfill service requests for additional profiles on the host. Moreover, the LMX9830 is prequalified as a _Bluetooth_ Integrated Component. Conformance testing through the _Bluetooth_ qualification program. The LMX9830 enables a short time to market after system integration by ensuring a high probability of compliance and interoperability.
Based on s CompactRISC 16-bit processor architecture and Digital Smart Radio technology, the LMX9830 is optimized to handle the data and link management processing requirements of a _Bluetooth_ node.
频率 2.4 GHz
电源电压DC 3.60V max
供电电流 0.065 mA
输出功率 0 dBm
待机电流 100 µA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.5V ~ 3.6V
安装方式 Surface Mount
引脚数 60

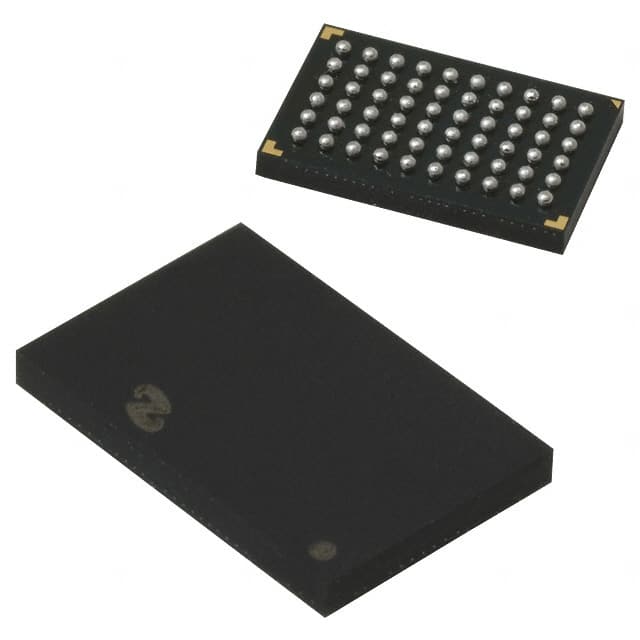

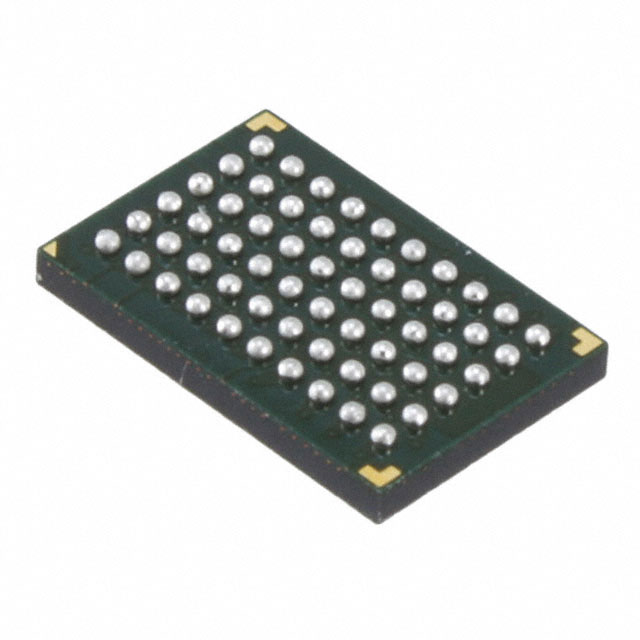

封装 FBGA-60
长度 9.10 mm
宽度 6.10 mm
封装 FBGA-60
厚度 1.20 mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 5A992.c
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LMX9830SMX/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LMX9830SM/NOPB 德州仪器 | 完全替代 | LMX9830SMX/NOPB和LMX9830SM/NOPB的区别 |
LMX9830SM 德州仪器 | 完全替代 | LMX9830SMX/NOPB和LMX9830SM的区别 |
LMX9830SMX 德州仪器 | 功能相似 | LMX9830SMX/NOPB和LMX9830SMX的区别 |
