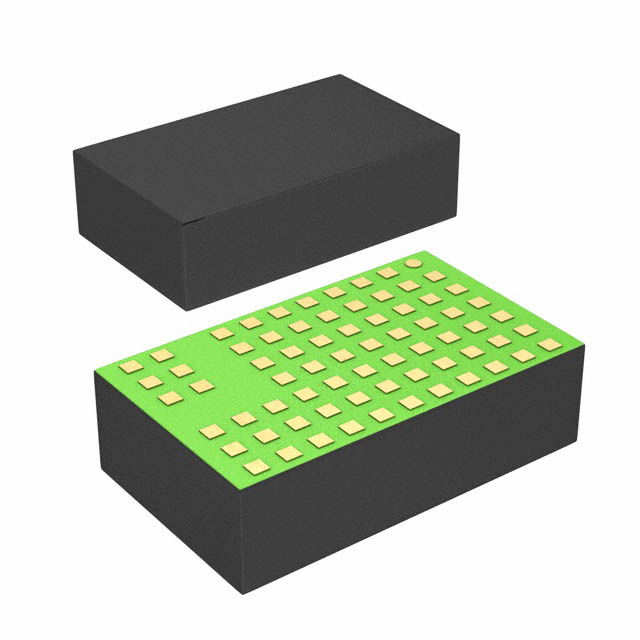

LINEAR TECHNOLOGY LTM8031MPV#PBF 芯片, 降压稳压器, uMODULE, 1A, 71LGA
Adjust the voltage level of your devices with this step down DC to DC converter from . This converter"s single output can produce a current up to 1 A. Using the part will provide the power your application needs by requiring a voltage only of 3.6 V and not exceeding a voltage of 36 V. With an adjustable output that has a voltage of 0.8 to 10 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.3%Typ and line regulation of 0.1%Typ. It has a switching frequency of 200 to 2400 kHz. This converter has an operating temperature range of -40 °C to 125 °C. This device utilizes umodule technology.
电源电压DC 36.0V max
输出接口数 1
输出电压 0.8V ~ 10V
输出电流 1 A
针脚数 71
开关频率 2.4 MHz
输入电压Max 36 V
输入电压Min 3.6 V
输出电压Max 10 V
输出电压Min 800 mV
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 3.6 V
电源电压Max 36 V
电源电压Min 3.6 V
输入电压 0.8.10 V
安装方式 Surface Mount
引脚数 71
封装 LGA-71
封装 LGA-71
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 ITE商业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
