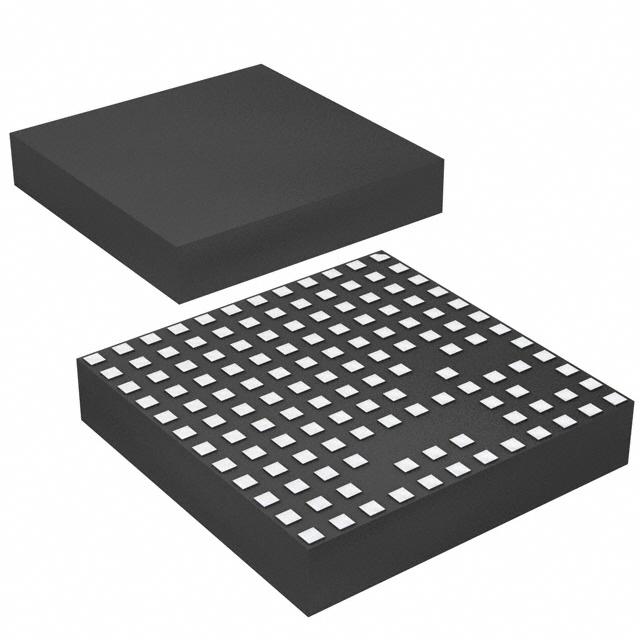

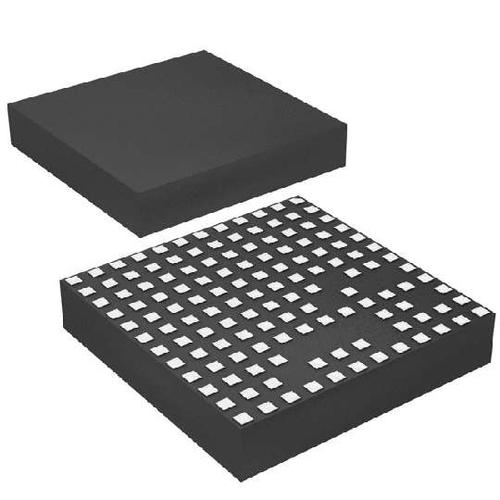

LTM4601AHVIV#PBF

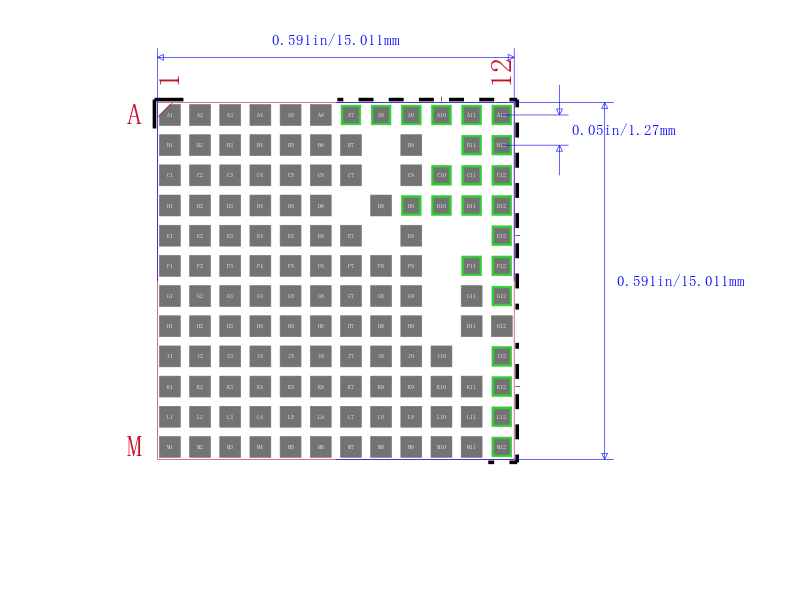

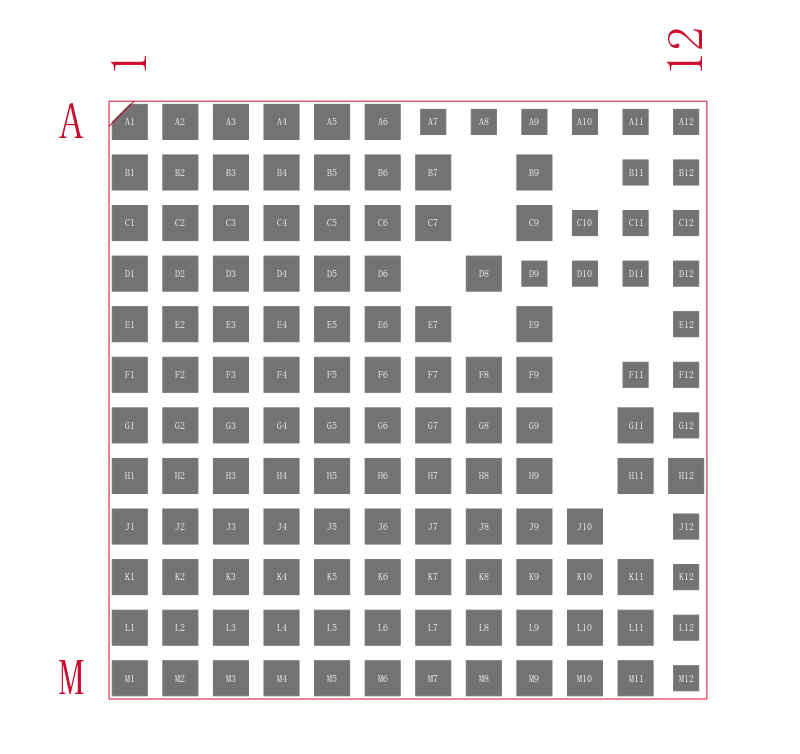

LINEAR TECHNOLOGY  LTM4601AHVIV#PBF  芯片, 直流/直流转换器, 12A, 133LGA

The is a complete step-down switch mode DC/DC power supply µModule Regulator with onboard switching controller, MOSFETs, inductor and all support components. Operating over an input voltage range of 4.5 to 28V, the LTM4601AHV supports an output voltage range of 0.6 to 5V as well as output voltage tracking and margining. The high efficiency design delivers 12A continuous current. Only bulk input and output capacitors are needed to complete the design. The µModule regulator can be synchronized with an external clock for reducing undesirable frequency harmonics and allows PolyPhase® operation for high load currents. An onboard differential remote sense amplifier can be used to accurately regulate an output voltage independent of load current.

.

Complete switch mode power supply

.

Output voltage tracking and margining

.

Redundant mounting pads for enhanced solder-joint strength

.

Parallel multiple µModule® Regulators for current sharing

.

Differential remote sensing for precision regulation

.

PLL Frequency synchronization

.

Current foldback protection

.

Ultrafast™ Transient response

.

Programmable soft-start

.

Output overvoltage protection

.

±1.5% Total DC error

.

Up to 95% efficiency at 5VIN, 3.3VOUT
