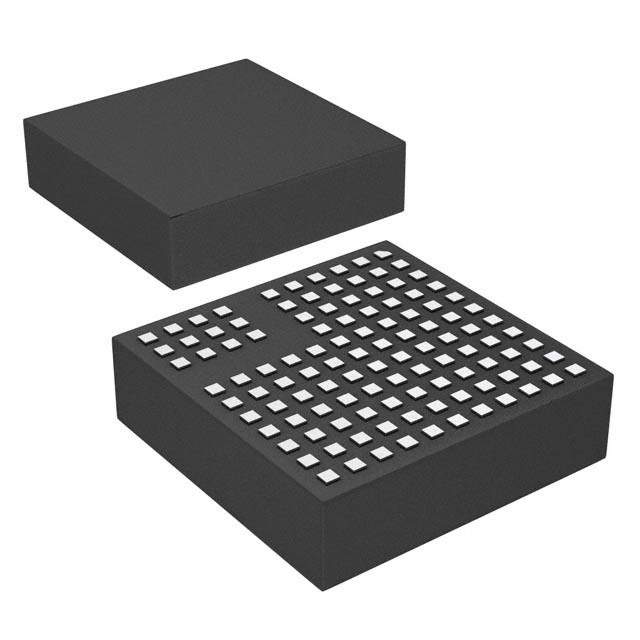

LINEAR TECHNOLOGY LTM8027MPY#PBF 芯片, 直流/直流转换器, 降压, 500KHZ, BGA-113
The is a complete DC/DC step-down power supply µModule Regulator includes the switching controller, power switches, inductor and all support components. Operating over an input voltage range of 4.5 to 60V 7.5V minimum voltage to start, the LTM8027 supports output voltages up to 24V and a switching frequency range of 100 to 500kHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design. A built-in soft-start timer is adjustable with a small capacitor.
输出接口数 1
输出电压 2.5V ~ 24V
输出电流 4 A
针脚数 113
开关频率 500 kHz
开关电流 6 A
输入电压Max 60 V
输入电压Min 4.5 V
输出电压Max 24 V
输出电压Min 2.5 V
输出电流Max 4 A
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 113

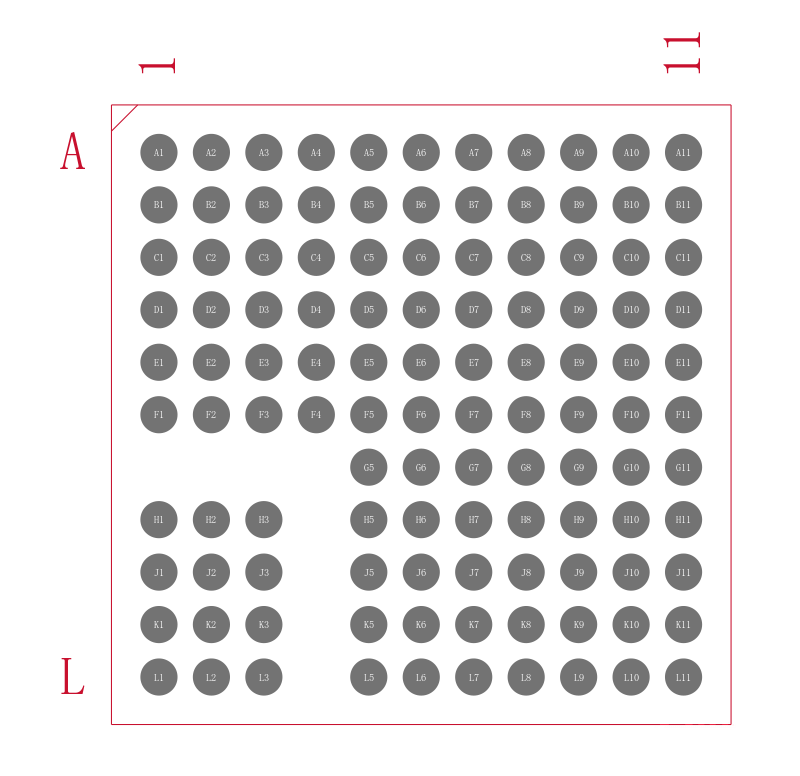

封装 BGA-113
封装 BGA-113
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tray
制造应用 Power Management, Industrial, Avionics, ITE(商业), 电源管理, Automotive, 信号处理, 通信与网络, Communications & Networking, 工业, 车用, Signal Processing, 航空电子
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTM8027MPY#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTM8027IY#PBF 凌力尔特 | 类似代替 | LTM8027MPY#PBF和LTM8027IY#PBF的区别 |
LTM8027EY#PBF 凌力尔特 | 类似代替 | LTM8027MPY#PBF和LTM8027EY#PBF的区别 |
