TEXAS INSTRUMENTS LM25085MY/NOPB 控制器, PFET, 恒定通导时间, 4.5V至42V, 1路输出, 降压, 1MHz, MSOP-8
The is a high efficiency PFET Switching Regulator Controller can be used to quickly and easily develop a small, efficient buck regulator for a wide range of applications. This high voltage controller contains a PFET gate driver and a high voltage bias regulator which operates over a wide 4.5 to 42V input range. The constant on-time regulation principle requires no loop compensation, simplifies circuit implementation and results in ultra-fast load transient response. The operating frequency remains nearly constant with line and load variations due to the inverse relationship between the input voltage and the on-time. The PFET architecture allows 100% duty cycle operation for a low dropout voltage. Either the RDSON of the PFET or an external sense resistor can be used to sense current for over-current detection.
电源电压DC 4.50V min
输出接口数 1
输出电压 1.25V ~ 42V
输出电流 1.75 A
针脚数 8
静态电流 1.25 mA
调节输出数 1
开关频率 1 MHz
拓扑结构 Buck
占空比 100 %
输入电压Max 42 V
输入电压Min 4.5 V
最大占空比 100 %
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 42V
电源电压Max 42 V
电源电压Min 4.5 V
输入电压 4.5V ~ 42V
安装方式 Surface Mount
引脚数 8

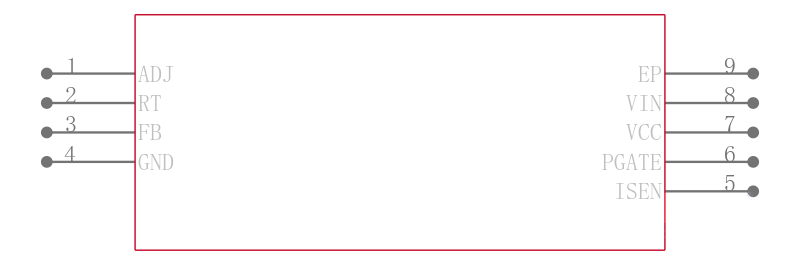

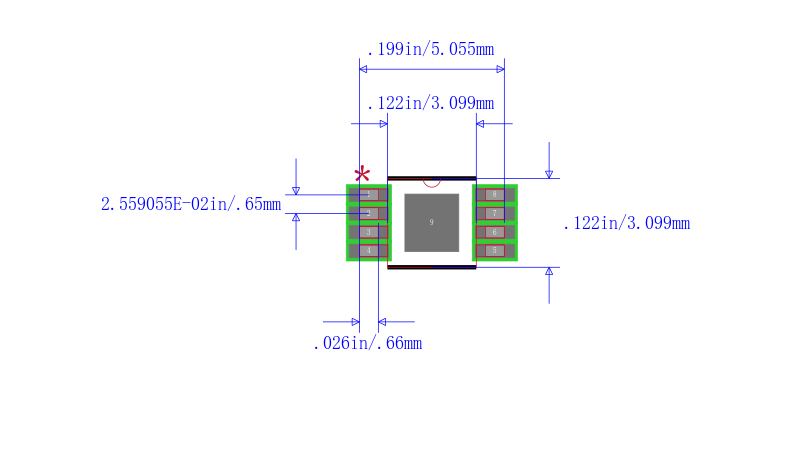

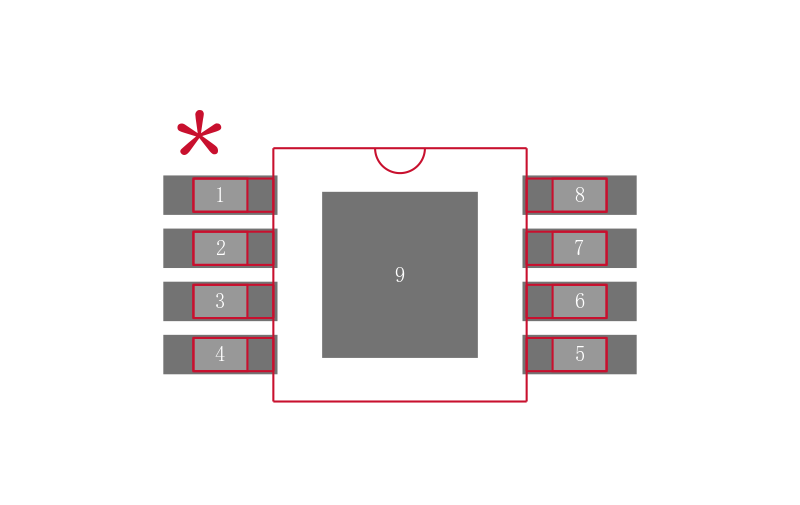

封装 MSOP-8
封装 MSOP-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM25085MY/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM25085MYE 德州仪器 | 功能相似 | LM25085MY/NOPB和LM25085MYE的区别 |
