LM2737MTC/NOPB

Texas Instruments一系列集成降压（降压）直流-直流控制器，用于需要使用外部电源 MOSFET 来实现完整开关调节器设计的应用。### 直流/直流控制器（外部开关），Texas Instruments

DESCRIPON

The LM2727 and LM2737 are high-speed, synchronous, switching regulator controllers. They are intended to control currents of 0.7A to 20A with up to 95% conversion efficiencies. The LM2727 employs output over-voltage and under-voltage latch- off. For applications where latch-off is not desired, the LM2737 can be used. Power up and down sequencing is achieved with the power-good flag, adjustable soft-start and output enable features. The LM2737 and LM2737 operate from a low-current 5V bias and can convert from a 2.2V to 16V power rail.

FEATURES

• Input Power from 2.2V to 16V

• Output Voltage Adjustable Down to 0.6V

• Power Good flag, Adjustable Soft-Start and Output Enable for Easy Power Sequencing

• Output Over-Voltage and Under-Voltage Latch-Off LM2727

• Output Over-Voltage and Under-Voltage FlagLM2737

• Reference Accuracy: 1.5% 0°C - 125°C

• Current Limit Without Sense Resistor

• Soft Start

• Switching Frequency from 50 kHz to 2 MHz

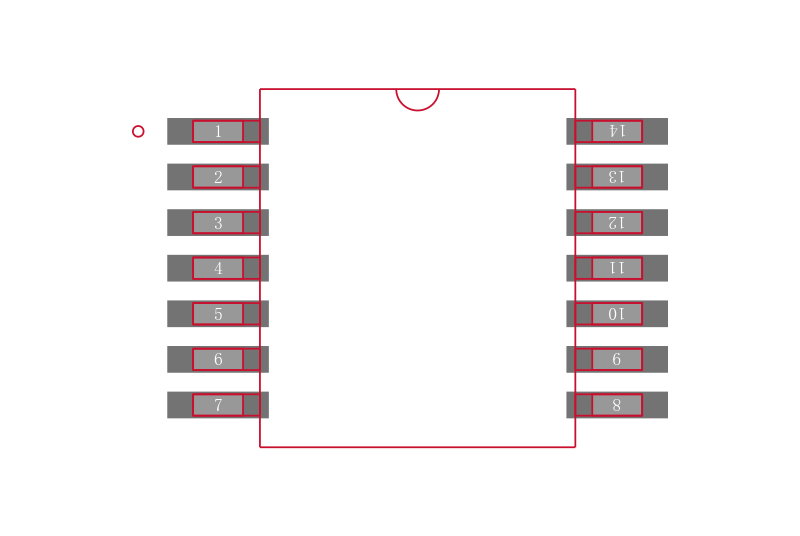

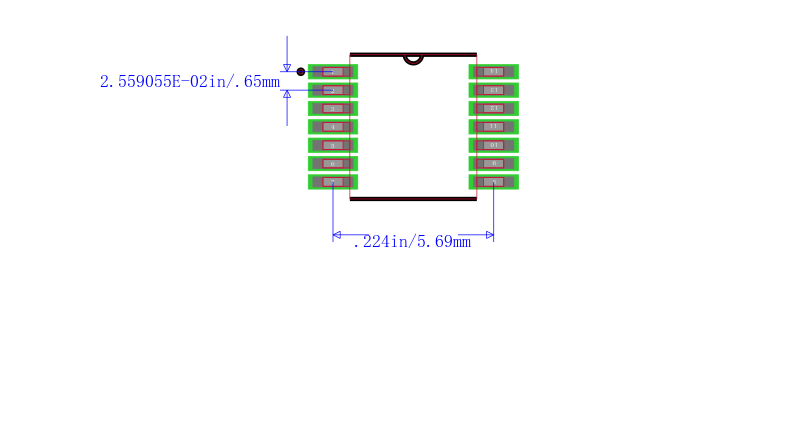

• TSSOP-14 Package

APPLICATIONS

• Cable Modems

• Set-Top Boxes/ Home Gateways

• DDR Core Power

• High-Efficiency Distributed Power

• Local Regulation of Core Power
