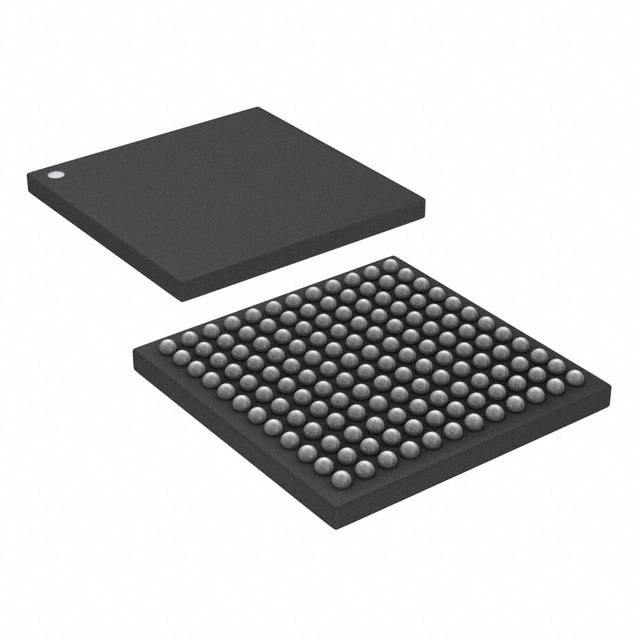

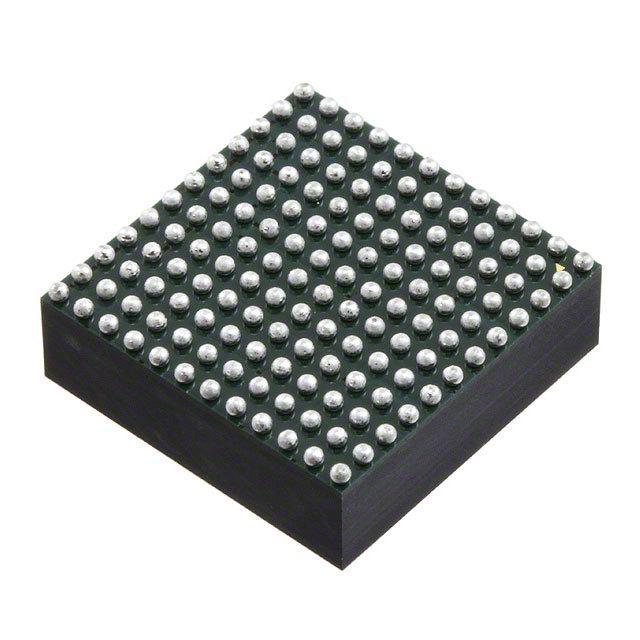

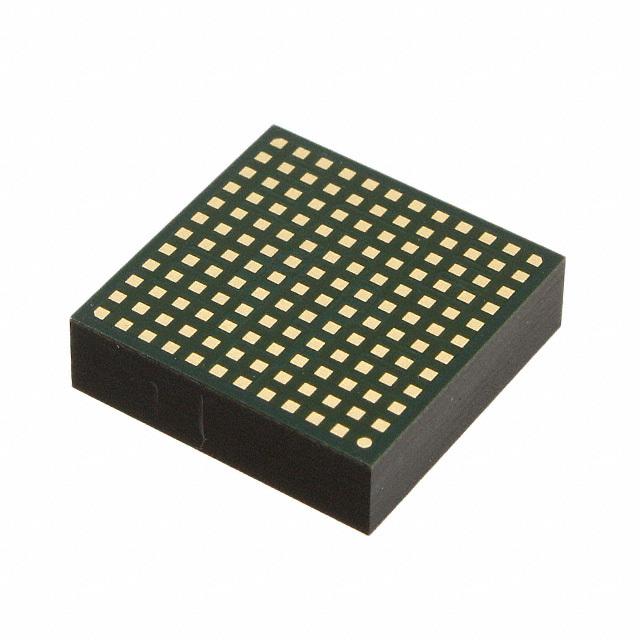

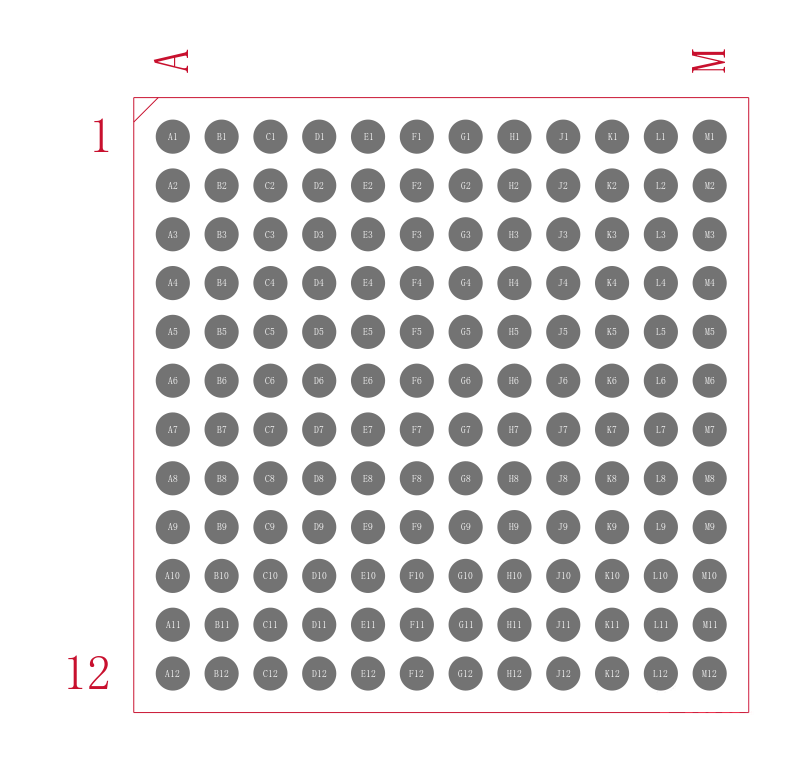

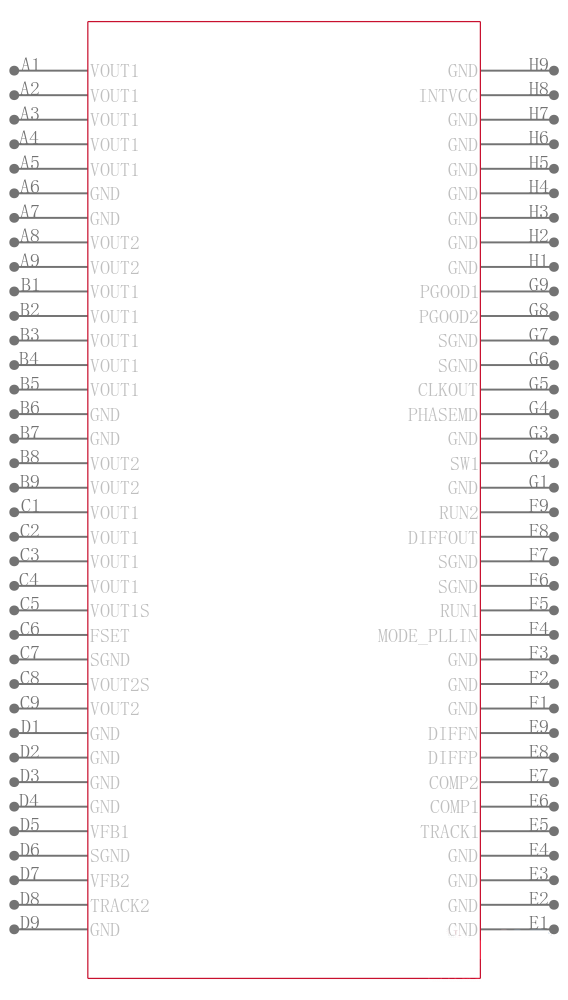

LTM4630IY

Conv DC-DC 4.5V to 15V Step Down Dual-Out 0.6V to 1.8V 18A/18A uModule 144Pin BGA Tray

DESCRIPTION

TheLTM®4630is a dual 18A or single 36A output switching mode step-down DC/DC µModule®micromodule regulator. Included in the package are the switching controllers, power FETs, inductors, and all supporting components. Operating from an input voltage range of 4.5V to 15V, the LTM4630 supports two outputs each with an output voltage range of 0.6V to 1.8V, each set by a single external resistor. Its high effciency design delivers up to 18A continuous current for each output. Only a few input and output capacitors are needed. The LTM4630 is pin compatible with the LTM4620 and LTM4620A dual 13A, single 26A and the LTM4628 dual 8A, single 16A.

FEATURES

Dual 18A or Single 36A Output

Wide Input Voltage Range: 4.5V to 15V

Output Voltage Range: 0.6V to 1.8V

±1.5% Maximum Total DC Output Error Over Line,Load and Temperature

Differential Remote Sense Amplifer

Current Mode Control/Fast Transient Response

Adjustable Switching Frequency

Overcurrent Foldback Protection

Multiphase Parallel Current Sharing with Multiple LTM4630s Up to 144A

Frequency Synchronization

Internal Temperature Monitor

Pin Compatible with the LTM4620 and LTM4620A Dual 13A, Single 26A and LTM4628 Dual 8A, Single 16A

Selectable Burst Mode® Operation

Soft-Start/Voltage Tracking

Output Overvoltage Protection

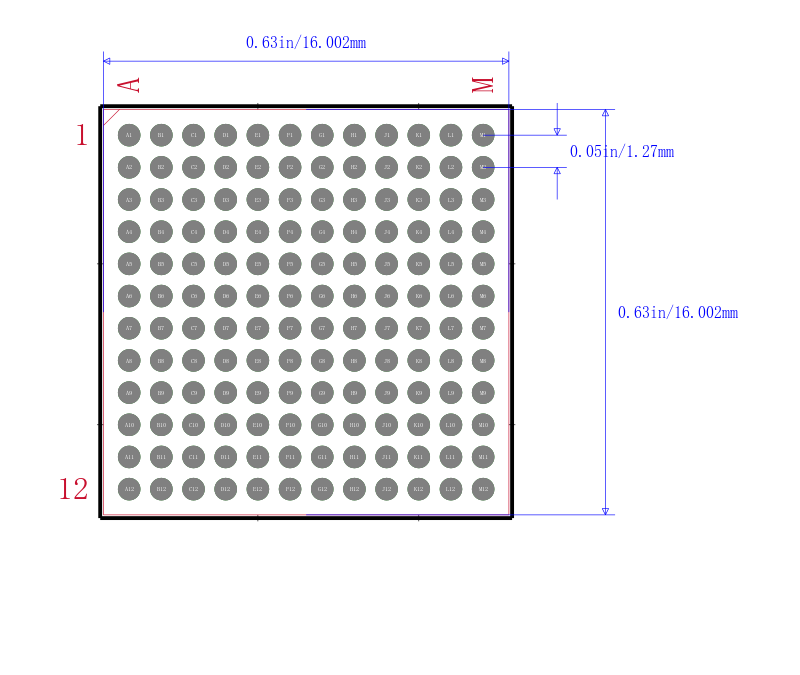

16mm × 16mm × 4.41mm LGA and 16mm × 16mm × 5.01mm BGA Packages

APPLICATIONS

Telecom and Networking Equipment

Storage and ATCA Cards

Industrial Equipment
