TEXAS INSTRUMENTS LM20143MHE/NOPB 直流-直流开关降压逐步递减稳压器, 可调, 2.95V-5.5V输入, 800mV-5V输出, 3A输出, HTSSOP-16
The is a full-featured PowerWise™ adjustable frequency synchronous Buck Regulator capable of delivering up to 3A of continuous output current. The current-mode control loop can be compensated to be stable with virtually any type of output capacitor. For most cases, compensating the device only requires two external components, providing maximum flexibility and ease of use. The device is optimized to work over the input voltage range of 2.95 to 5.5V, making it suited for a wide variety of low voltage systems. The device features internal overvoltage protection OVP and overcurrent protection OCP circuit for increased system reliability. A precision enable pin and integrated UVLO allows the turn-ON of the device to be tightly controlled and sequenced. Startup inrush currents are limited by both an internally fixed and externally adjustable soft-start circuit. Fault detection and supply sequencing is possible with the integrated power good circuit.
输出接口数 1
输出电压 0.8V ~ 5V
输出电流 3 A
针脚数 16
静态电流 3.50 mA
调节输出数 1
开关频率 1.5 MHz
拓扑结构 Buck
输入电压Max 5.5 V
输入电压Min 2.95 V
输出电压Max 5 V
输出电压Min 0.8 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 2.95V ~ 5.5V
安装方式 Surface Mount
引脚数 16

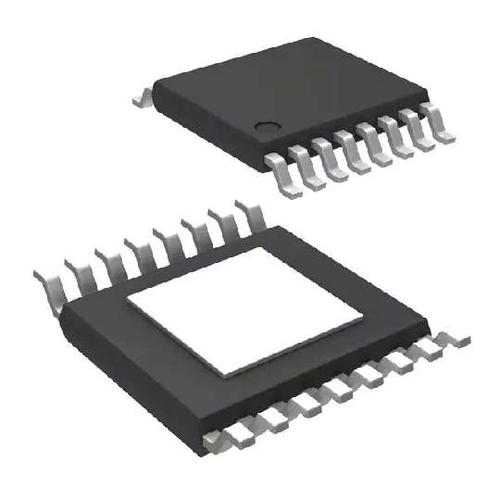

封装 HTSSOP-16
长度 5 mm
宽度 4.4 mm
高度 0.9 mm
封装 HTSSOP-16
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM20143MHE/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM20143MH/NOPB 德州仪器 | 类似代替 | LM20143MHE/NOPB和LM20143MH/NOPB的区别 |
LM20143MHX/NOPB 德州仪器 | 类似代替 | LM20143MHE/NOPB和LM20143MHX/NOPB的区别 |
