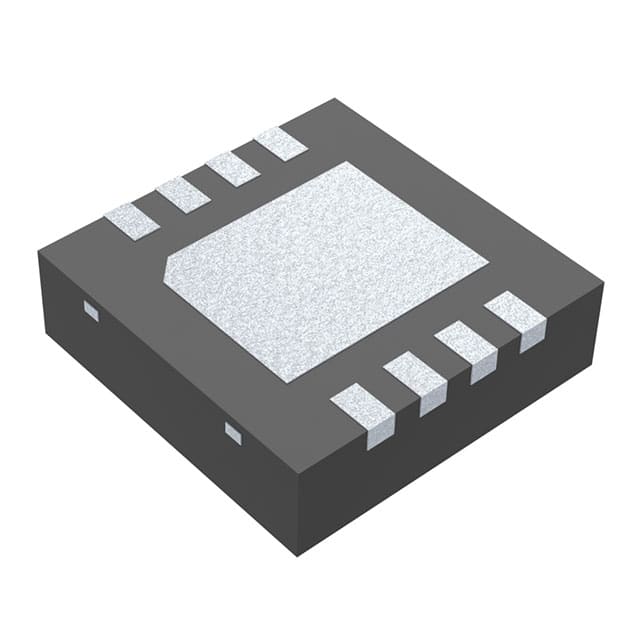

TEXAS INSTRUMENTS LM5085SDE/NOPB 芯片, 开关稳压器
降压 稳压器 正 输出 降压 - DC DC 切换控制器 IC 8-WSON(3x3)
得捷:
IC REG CTRLR BUCK 8WSON
立创商城:
降压型 4.5V~75V 1MHz
德州仪器TI:
4.5-75V Wide Vin, Constant On-Time Non-Synchronous PFET Buck Controller
贸泽:
开关控制器 4.5-75V Wide Vin, Constant On-Time Non-Synchronous PFET Buck Controller 8-WSON -40 to 125
e络盟:
芯片, 开关稳压器
艾睿:
Step the voltage level within your circuit to match your specifications using the highly-efficient buck LM5085SDE/NOPB DC voltage controller, developed by Texas Instruments. With an output that has a voltage of 1.25 to 75 V, this is power management at its best. Its output produces a current of 1.75 A. This DC voltage controller has single output. This DC voltage controller has an input voltage of 4.5 to 75 V. It has a switching frequency of 1000 kHz. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This DC voltage controller has an operating temperature range of -40 °C to 125 °C.
安富利:
DC DC Cntrlr Single-OUT Buck 4.5V to 75V Input 8-Pin LLP EP T/R
Chip1Stop:
DC DC Cntrlr Single-OUT Buck 4.5V to 75V Input 8-Pin LLP EP T/R
Verical:
DC DC Cntrlr Single-OUT Buck 4.5V to 75V Input 8-Pin WSON EP T/R
Newark:
# TEXAS INSTRUMENTS LM5085SDE/NOPB DC/DC Controller, Constant On-Time Control, 4.5V to 75V, 1 Output, Buck, 1MHz, LLP-8
DeviceMart:
IC REG CTRLR BUCK PWM 8LLP
Win Source:
Buck Regulator Positive Output Step-Down DC-DC Controller IC 8-WSON 3x3
电源电压DC 4.50V min
输出接口数 1
输出电压 1.25V ~ 75V
输出电流 1.75 A
通道数 1
针脚数 8
静态电流 1.30 mA
调节输出数 1
开关频率 1 MHz
拓扑结构 Buck
占空比 100 %
输入电压Max 75 V
输入电压Min 4.5 V
最大占空比 100 %
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 75V
电源电压Max 75 V
电源电压Min 4.5 V
输入电压 4.5V ~ 75V
引脚数 8
封装 WFDFN-8
封装 WFDFN-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM5085SDE/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM5085SD/NOPB 德州仪器 | 类似代替 | LM5085SDE/NOPB和LM5085SD/NOPB的区别 |
LM5085SDX/NOPB 德州仪器 | 类似代替 | LM5085SDE/NOPB和LM5085SDX/NOPB的区别 |
