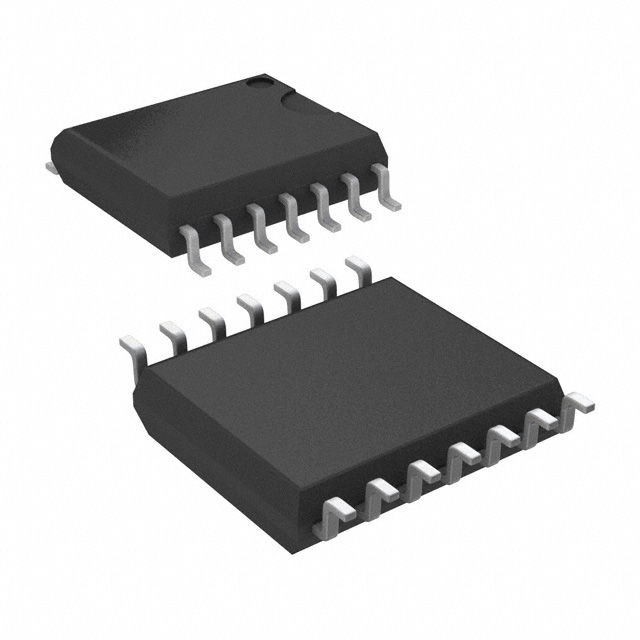

LM2574MX-5.0/NOPB

0.5A 降压电压稳压器

The is a step-down Voltage Regulator that provides all the active functions for a step-down buck switching regulator, capable of driving a 0.5A load with excellent line and load regulation. It requires a minimum number of external components, it is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The LM2574xx series offers a high-efficiency replacement for popular three-terminal linear regulators. Because of its high efficiency, the copper traces on the printed-circuit board PCB are normally the only heat sinking needed. A standard series of inductors optimized for use with the LM2574 are available from several different manufacturers. This feature greatly simplifies the design of switch-mode power supplies. Other features include a specified ±4% tolerance on output voltage within specified input voltages and output load conditions and ±10% on the oscillator frequency.

.

Requires only 4 external components

.

TTL Shutdown capability, low-power standby mode

.

High efficiency

.

Uses readily available standard inductors

.

Thermal shutdown and current-limit protection

.

Green product and no Sb/Br
