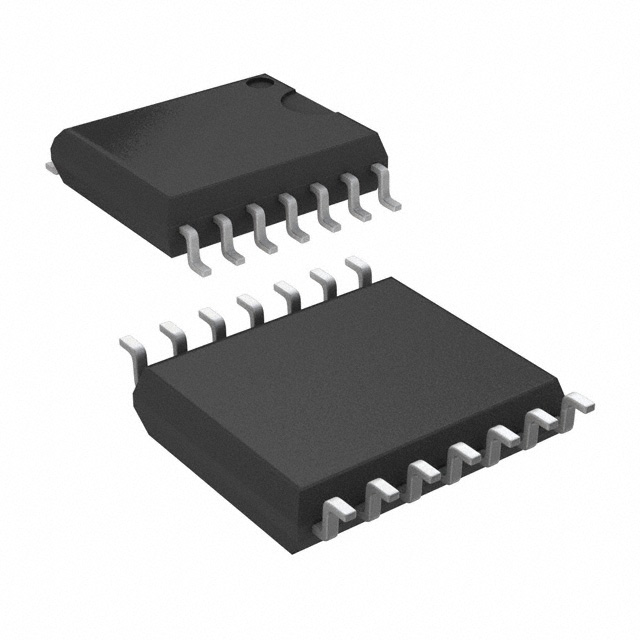

TEXAS INSTRUMENTS LM2574MX-ADJ/NOPB 直流-直流开关降压逐步递减稳压器, 可调, 4V-40V输入, 1.23V-37V输出, 500mA输出, SOIC-14
The is a SIMPLE SWITCHER® step-down Voltage Regulator for use with on-card switching regulators. The LM2574xx series of regulator is monolithic integrated circuit that provides all the active functions for a step-down buck switching regulator, capable of driving a 0.5A load with excellent line and load regulation. This device is available in fixed output voltages of 3.3, 5, 12, 15V and an adjustable output version. Requiring a minimum number of external components, this regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The LM2574xx series offers a high-efficiency replacement for popular three-terminal linear regulators. Because of its high efficiency, the copper traces on the printed-circuit board PCB are normally the only heat sinking needed. A standard series of inductors optimized for use with the LM2574 are available from several different manufacturers.
输出接口数 1
输出电压 1.23V ~ 37V
输出电流 500 mA
针脚数 14
静态电流 5.00 mA
调节输出数 1
开关频率 52 kHz
拓扑结构 Buck
输入电压Max 40 V
输入电压Min 4 V
输出电压Max 37 V
输出电压Min 1.23 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4 V
输入电压 4V ~ 40V
安装方式 Surface Mount
引脚数 14
封装 SOIC-14
封装 SOIC-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2574MX-ADJ/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2574MX-ADJ 德州仪器 | 完全替代 | LM2574MX-ADJ/NOPB和LM2574MX-ADJ的区别 |
LM2574HVM-ADJ/NOPB 德州仪器 | 类似代替 | LM2574MX-ADJ/NOPB和LM2574HVM-ADJ/NOPB的区别 |
LM2574M-ADJ/NOPB 德州仪器 | 类似代替 | LM2574MX-ADJ/NOPB和LM2574M-ADJ/NOPB的区别 |
