TEXAS INSTRUMENTS LM5066IPMHE/NOPB 芯片, 热拔插控制器, 80V, HTSSOP-28
The is a high-voltage System Power Management and Protection IC with PMBus. It provides robust protection and precision monitoring for 10 to 80V systems. Programmable UV, OV, ILIMIT and fast-short circuit protection allow for customized protection for any application. Programmable FET SOA protection sets the maximum power the FET is allowed to dissipate under any condition. The programmable fault timer tFAULT is set to avoid nuisance trips, ensure start-up and limit the duration of over load events. In addition to circuit protection, the LM5066I supplies real-time power, voltage, current, temperature and fault data to the system management host through the I²C/SMBus interface. PMBus compliant command structure makes it easy to program the device. Precision telemetry enables intelligent power management functions such as efficiency optimization and early fault detection.
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
电源电压DC 10.0V min
输入电压DC 80.0 V
供电电流 5.6 mA
通道数 1

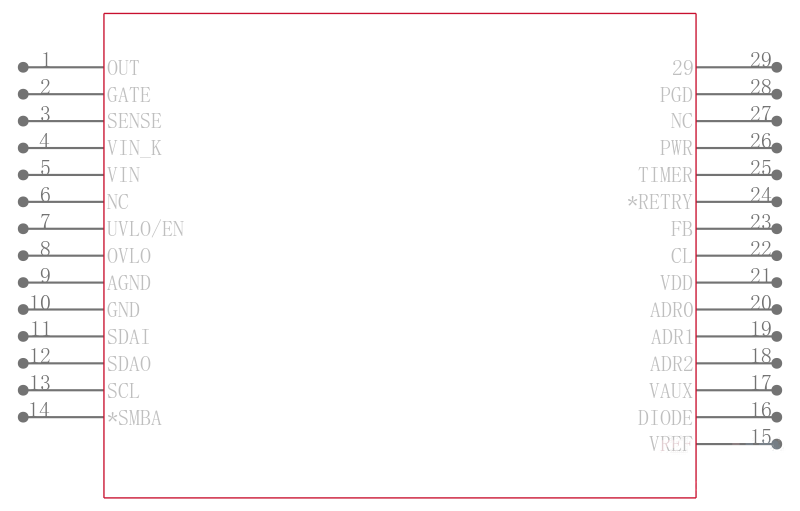

针脚数 28
开关频率 400 kHz
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 10V ~ 80V
电源电压Max 80 V
电源电压Min 10 V
安装方式 Surface Mount
引脚数 28

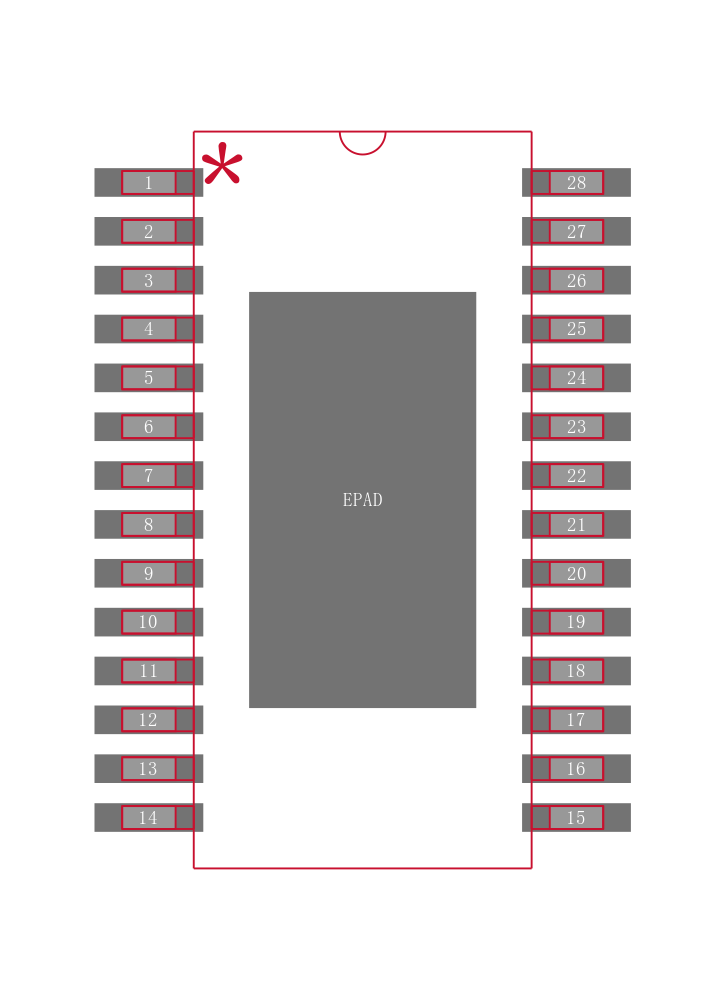

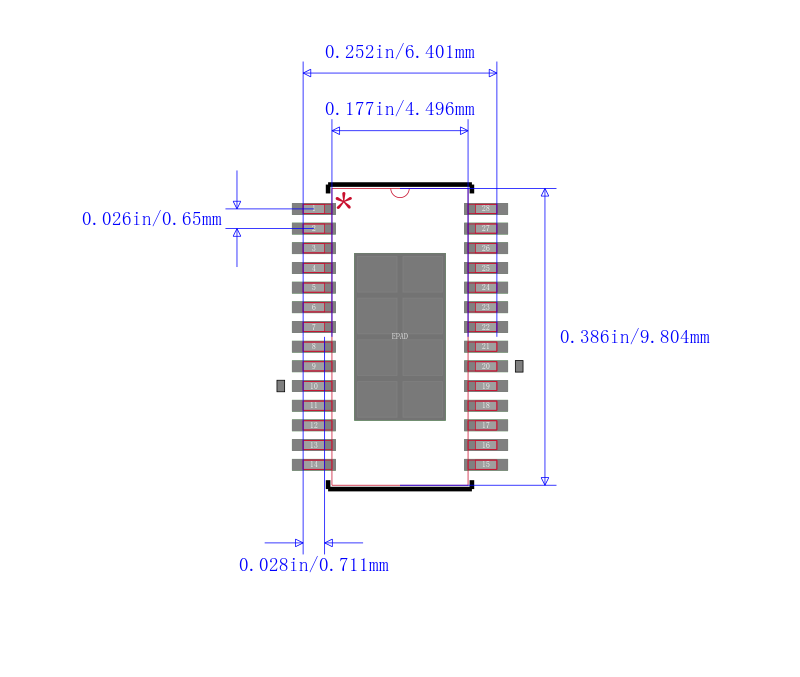

封装 HTSSOP-28
高度 1.05 mm
封装 HTSSOP-28
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 工业, 通信与网络, 电源管理, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM5066IPMHE/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM5066IPMHX/NOPB 德州仪器 | 完全替代 | LM5066IPMHE/NOPB和LM5066IPMHX/NOPB的区别 |
