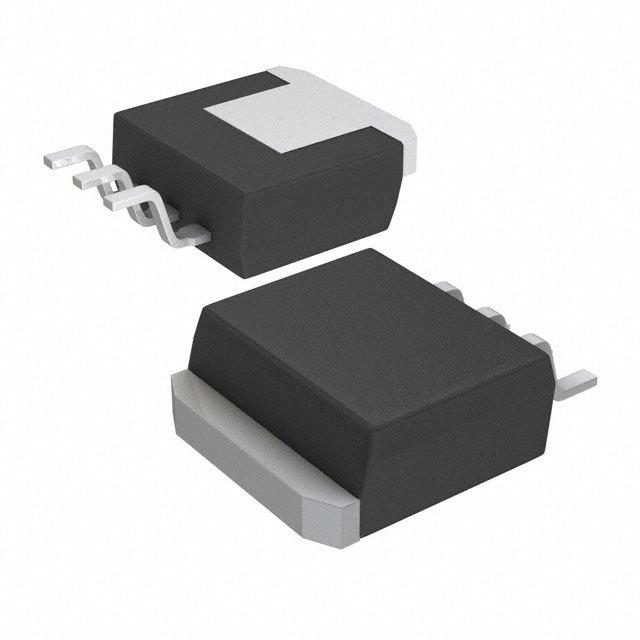

TEXAS INSTRUMENTS LM1085ISX-ADJ/NOPB 电压稳压器, LDO, 可调, 2.6V至27V输入, 1.3V压差, 1.2V至15V/3A输出, TO-263-3
The LM1085 is a regulator with a maximum dropout of 1.5 V at 3 A of load current. It has the same pin-out as s industry standard LM317.
Two resistors are required to set the output voltage of the adjustable output voltage version of the LM1085. Fixed output voltage versions integrate the adjust resistors.
The LM1085 circuit includes a zener trimmed bandgap reference, current limiting and thermal shutdown.
Refer to the LM1084 for the 5A version, and the LM1086 for the 1.5A version.
输出接口数 1
输出电压 1.2V ~ 15V
输出电流 3 A
供电电流 10 mA
针脚数 3
静态电流 5.00 mA
输出电容类型 Ceramic
跌落电压 1.3 V
调节输出数 1
输入电压Max 29 V
输入电压Min 2.6 V
输出电压Max 15 V
输出电压Min 1.2 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 2.6V ~ 29V
安装方式 Surface Mount
引脚数 3
封装 TO-263-4
封装 TO-263-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM1085ISX-ADJ/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM1085ISX-3.3/NOPB 德州仪器 | 类似代替 | LM1085ISX-ADJ/NOPB和LM1085ISX-3.3/NOPB的区别 |
LM1085IS-ADJ/NOPB 德州仪器 | 类似代替 | LM1085ISX-ADJ/NOPB和LM1085IS-ADJ/NOPB的区别 |
LM1085IS-ADJ 德州仪器 | 类似代替 | LM1085ISX-ADJ/NOPB和LM1085IS-ADJ的区别 |
