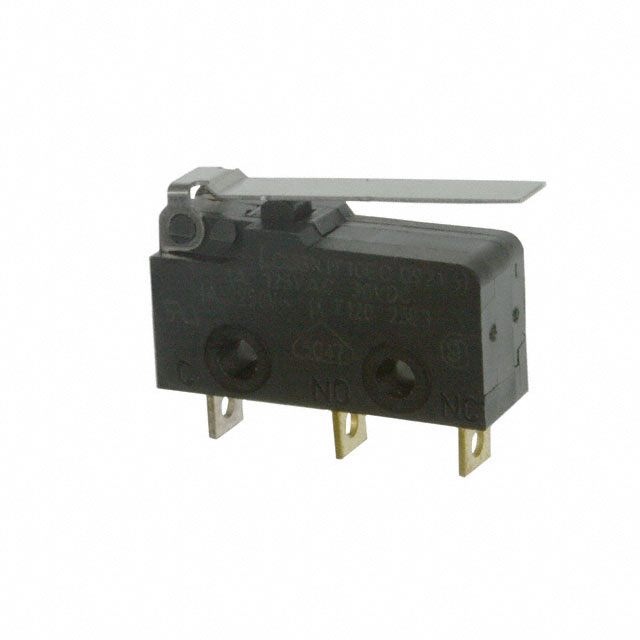

Switch Snap Action N.O./N.C. SPDT Lever Solder 1A 125VAC 30VDC 0.47N Screw Mount

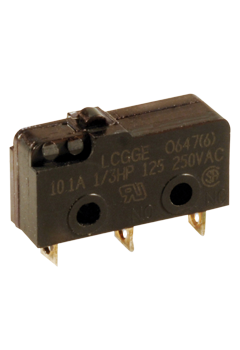

10.1 A, Subminiature Precision Snap Acting Switches
The LC Series of SPDT snap-acting switches afford small size, long life and high electrical capacity. Rated from low level to 1 amp at 125 VAC, 30 VDC, the switches provide a snap-acting mechanism that is positive and reliable, with a rolling and wiping contact action that assures good electrical life.- .
- * Centerline to Centerline Mounting Holes:** 0.375" 9.53.
These subminiature precision snap acting switches thermoplastic polyester actuator button material, and have single pole contacts.
额定电流 1.00 A
触点类型 SPDT
易燃性等级 UL 94 V-0
针脚数 2
触点额定电流 1.00 A
额定电流Max 1A @125VAC, 30VDC
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 125 VAC
额定电压DC Max 30 V
额定电压AC Max 125 V
安装方式 Lug
长度 19.84 mm
高度 10.01 mm
触点材质 Fine Silver
工作温度 -25℃ ~ 85℃
产品生命周期 6000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509040
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LCGGX1T10EC C&K Components | 当前型号 | 当前型号 |
LCGGF5T10ECUE C&K Components | 功能相似 | LCGGX1T10EC和LCGGF5T10ECUE的区别 |
LCGGF5T10RC C&K Components | 功能相似 | LCGGX1T10EC和LCGGF5T10RC的区别 |
LCGGF5T10HCE C&K Components | 功能相似 | LCGGX1T10EC和LCGGF5T10HCE的区别 |
