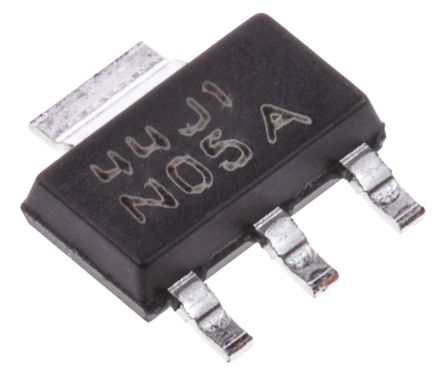

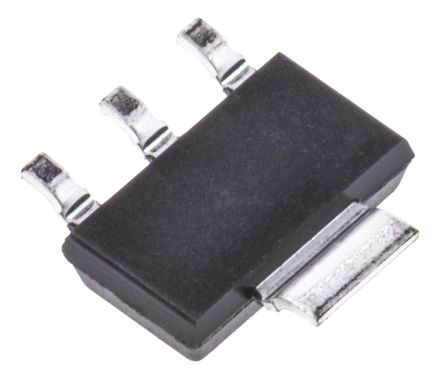

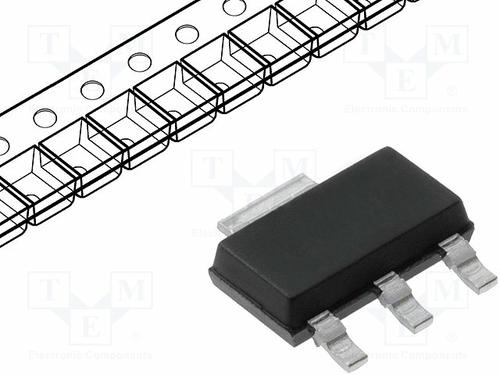

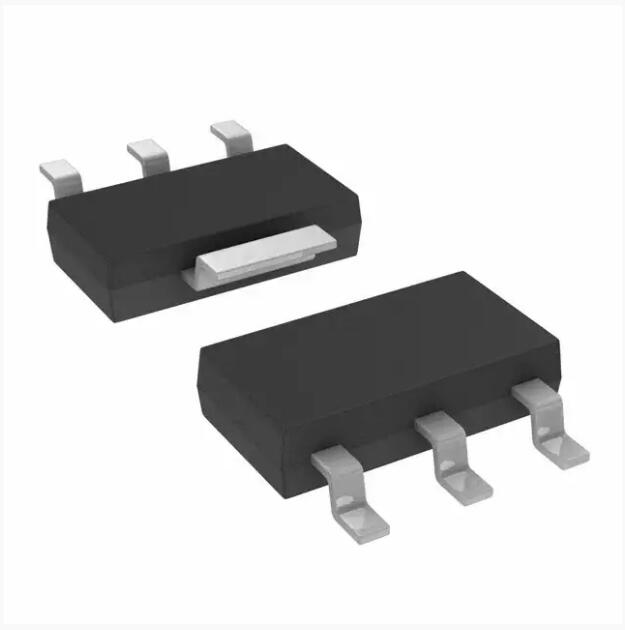

LM1117MP-3.3/NOPB

TEXAS INSTRUMENTS  LM1117MP-3.3/NOPB.  芯片, 稳压器, LDO, 3.3V, 0.8A, SOT-223-4, 整卷

LDO（低压降）线性稳压器，600mA 至 800mA，Texas Instruments

### LDO（低压降）线性稳压器，Texas Instruments

低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

得捷:
IC REG LINEAR 3.3V 800MA SOT223

欧时:
### LDO（低压降）线性电压调节器，600mA 至 800mA，Texas Instruments### LDO（低压降）线性电压调节器，Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

立创商城:
LM1117MP-3.3/NOPB

德州仪器TI:
800-mA 15-V linear voltage regulator

e络盟:
稳压器, 固定LDO, 15V输入, 1.2V压差, 3.3V/800mA输出, SOT-223-3

艾睿:
Having trouble maintaining a steady voltage? This LDO LM1117MP-3.3/NOPB linear regulator from Texas Instruments will give you control over the voltage levels of your circuit. Its typical dropout voltage at current is 1.1@100mA|1.15@500mA|1.2@800mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.8 A. This will operate at a maximum voltage of 15 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. At a load regulation of 1mVTyp and line regulation of 1mVTyp your circuit is capable of maintaining a constant voltage level at your output. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has an operating temperature range of 0 °C to 125 °C. Its polarity is positive. The maximum dropout voltage is 1.2@100mA|1.25@500mA|1.3@800mA V.

安富利:
LDO Regulator Pos 3.3V 0.8A 4-Pin3+Tab SOT-223 T/R

Chip1Stop:
LDO Regulator Pos 3.3V 0.8A 4-Pin3+Tab SOT-223 T/R

TME:
Voltage regulator; LDO, fixed; 3.3V; 0.8A; SOT223; SMD; Channels:1

Verical:
LDO Regulator Pos 3.3V 0.8A 4-Pin3+Tab SOT-223 T/R

Newark:
# TEXAS INSTRUMENTS  LM1117MP-3.3/NOPB  Fixed LDO Voltage Regulator, 15V in, 1.2V Dropout, 3.3V/800mA out, SOT-223-3

力源芯城:
3.3V 固定输出,800mA,低压降线性稳压器

DeviceMart:
IC REG LDO 3.3V .8A SOT-223

Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 800mA SOT-223
