LM27402SQX/NOPB

具有 DCR 电流感应的 3-20V、电压模式同步降压控制器 16-WQFN -40 to 125

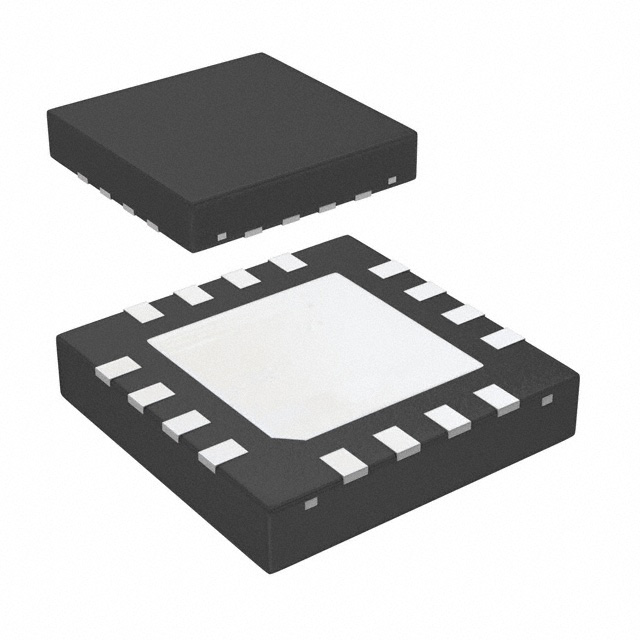

降压 稳压器 正 输出 降压 - DC DC 切换控制器 IC 16-WQFN（4x4）

立创商城:
降压型 3V~20V 1.2MHz

得捷:
IC REG CTRLR BUCK 16WQFN

德州仪器TI:
3-V to 20-V, voltage mode synchronous buck controller with DCR current sensing

艾睿:
DC DC Cntrlr Single-OUT Sync Buck 3V to 20V Input 16-Pin WQFN EP T/R

安富利:
The LM27402 is a synchronous voltage mode DC/DC buck controller with inductor DCR current sense capability. Sensing the inductor current eliminates the need to add resistive powertrain elements which increases overall efficiency and facilitates accurate continuous current limit sensing. A 0.6V ±1% voltage reference enables high accuracy and low voltage capability at the output. An input operating voltage range of 3V to 20V makes the LM27402 suitable for a large variety of input rails. The LM27402 voltage mode control loop incorporates input voltage feed-forward to maintain stability throughout the entire input voltage range. The switching frequency is adjustable from 200 kHz to 1.2 MHz. Dual high current integrated N-channel MOSFET drivers support large QG, low RDSON MOSFETs. A power good indicator provides power rail sequencing capability and output fault detection. Adjustable external soft-start capability limits inrush current and provides monotonic output control during startup. Other features include external tracking of other power supplies, integrated LDO bias supply, and synchronization capability. The LM27402 is offered in a 16 pin HTSSOP package and a 4 mm x 4 mm 16 pin exposed WQFN.

Verical:
DC DC Cntrlr Single-OUT Sync Buck 3V to 20V Input 16-Pin WQFN EP T/R
