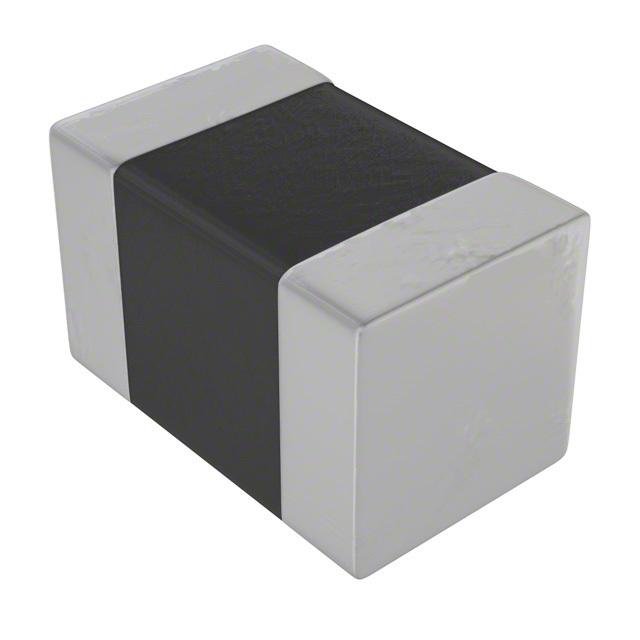

固定电感器 0805 1uH 91mOhms +/-20%Tol 400mA
Inductor Chip Wirewound 1uH 20% 7.96MHz Ferrite 400mA 91mOhm DCR 0805 T/R
得捷:
FIXED IND 1UH 400MA 91 MOHM SMD
立创商城:
1uH ±20% 400mA 70mΩ
贸泽:
固定电感器 0805 1uH 91mOhms +/-20%Tol 400mA
艾睿:
Inductor Chip Wirewound 1uH 20% 7.96MHz Ferrite 400mA 91mOhm DCR 0805 T/R
Chip1Stop:
Inductor Chip Wirewound 1uH 20% 7.96MHz Ferrite 400mA 91mOhm DCR 0805 T/R
Verical:
Inductor General Purpose Chip Wirewound 1uH 20% 7.96MHz Ferrite 0.4A 0.091Ohm DCR 0805 T/R
Newark:
# TAIYO YUDEN LBR2012T1R0M Surface Mount High Frequency Inductor, LB Series, 1 µH, 400 mA, 0805 [2012 Metric], Wirewound
MASTER:
Inductor General Purpose Chip Wirewound 1uH 20% 7.96MHz Ferrite 0.4A 0.091Ohm DCR 0805 T/R
Online Components:
Inductor Chip Wirewound 1uH 20% 7.96MHz Ferrite 400mA 91mOhm DCR 0805 T/R
Electro Sonic:
Inductor General Purpose Chip Wirewound 1uH 20% 7.96MHz Ferrite 0.4A 0.091Ohm DCR 0805 T/R
Win Source:
1μH Unshielded Wirewound Inductor 400mA 91 mOhm Max 0805 2012 Metric
额定电流 400 mA
容差 ±20 %
无卤素状态 Halogen Free
电感 1 µH
自谐频率 100 MHz
产品系列 LB
电感公差 ±20 %
测试频率 7.96 MHz
电阻DC) ≤91 mΩ
额定电流DC 400 mA
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.091 Ω
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 1.6 mm
封装公制 2012
封装 0805
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504500000
