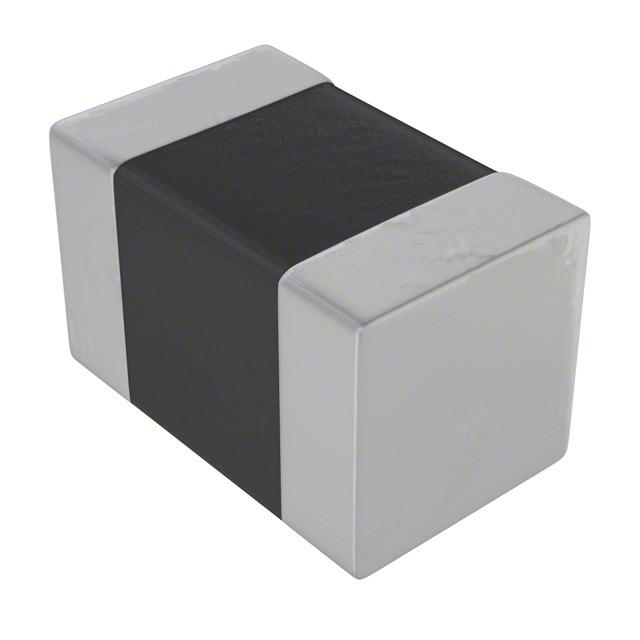

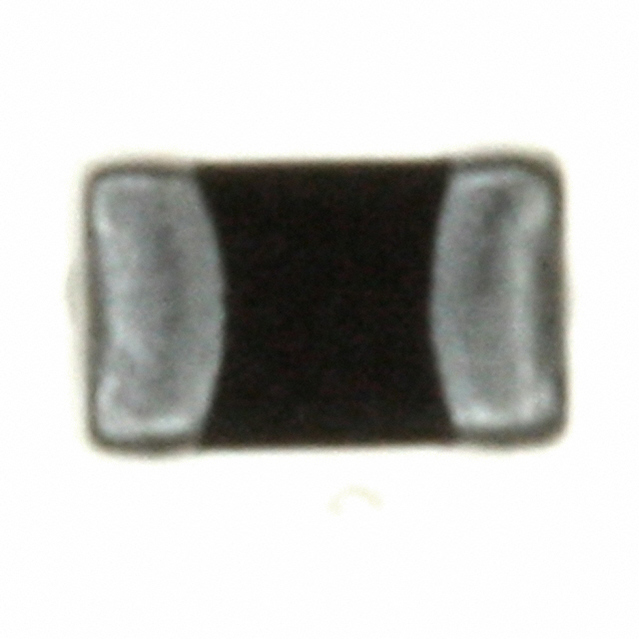

TAIYO YUDEN LBR2012T4R7M 电感, 4.7uH, 200MA, 20%, 45MHZ, SMD
4.7µH Unshielded Wirewound Inductor 200mA 240mOhm 0805 2012 Metric
立创商城:
4.7uH ±20% 312mΩ
得捷:
FIXED IND 4.7UH 200MA 240MOHM SM
贸泽:
Fixed Inductors 0805 4.7uH 312mOhms +/-20%Tol 200mA
艾睿:
Inductor General Purpose Chip Wirewound 4.7uH 20% 7.96MHz Ferrite 0.2A 0.312Ohm DCR 0805 T/R
安富利:
Ind Chip Wirewound 4.7uH 20% 7.96MHz Ferrite 200mA 0805 T/R
Chip1Stop:
Inductor Chip Wirewound 4.7uH 20% 7.96MHz Ferrite 200mA 312mOhm DCR 0805 T/R
Verical:
Inductor General Purpose Chip Wirewound 4.7uH 20% 7.96MHz Ferrite 0.2A 0.312Ohm DCR 0805 T/R
Newark:
# TAIYO YUDEN LBR2012T4R7M Surface Mount High Frequency Inductor, LB Series, 4.7 µH, 200 mA, 0805 [2012 Metric], Wirewound
Electro Sonic:
Inductor General Purpose Chip Wirewound 4.7uH 20% 7.96MHz Ferrite 0.2A 0.312Ohm DCR 0805 T/R
Win Source:
FIXED IND 4.7UH 200MA 240 MOHM
额定电流 200 mA
容差 ±20 %
无卤素状态 Halogen Free
电感 4.7 µH
自谐频率 45 MHz
产品系列 LB
电感公差 ±20 %
测试频率 7.96 MHz
电阻DC) 240 mΩ
额定电流DC 200 mA
工作温度Max 105 ℃
工作温度Min 40 ℃
电阻DC Max 0.24 Ω
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 1.6 mm
封装公制 2012
封装 0805
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
