LCD 驱动器 LED AND LCD DISPLAY DRIVE
LC75805PE is the 1/1 to 1/4 duty general-purpose LCD display driver with the LED driver to use for the instrument panel display by control with the controller. In addition, LC75805PE is able to drive up to 48 LED and LCD of up to 140 segments directly, and has a built-in 7ch PWM function for brightness adjustment of LED. Furthermore, because of built-in the oscillator circuit, it is possible to reduce external resister and capacitor for oscillation.
Features
---
|
Static Drive 1/1 Duty Drive : Capable of driving up to 38 segments.
1/2 Duty Drive : Capable of driving up to 74 segments.
1/3 Duty Drive : Capable of driving up to 108 segments.
1/4 Duty Drive : Capable of driving up to 140 segments.
无卤素状态 Halogen Free
供电电流 750 µA
耗散功率 400 mW
工作温度Max 95 ℃
工作温度Min -40 ℃
耗散功率Max 400 mW
电源电压 4.5V ~ 5.5V
安装方式 Surface Mount
引脚数 100

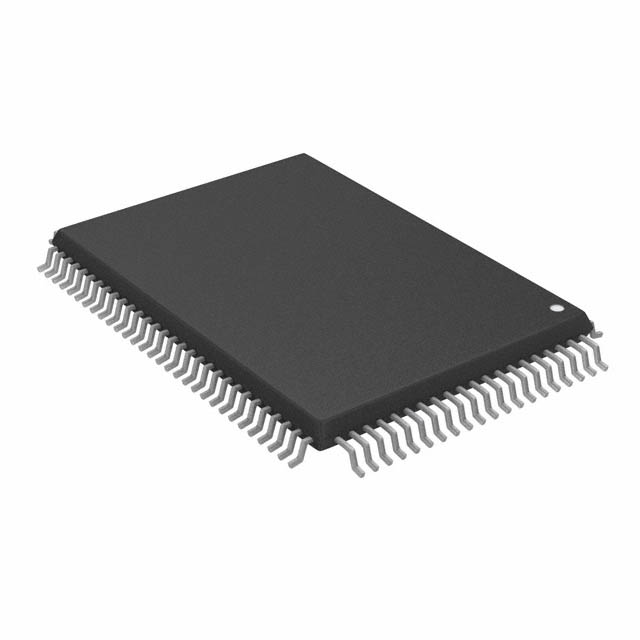

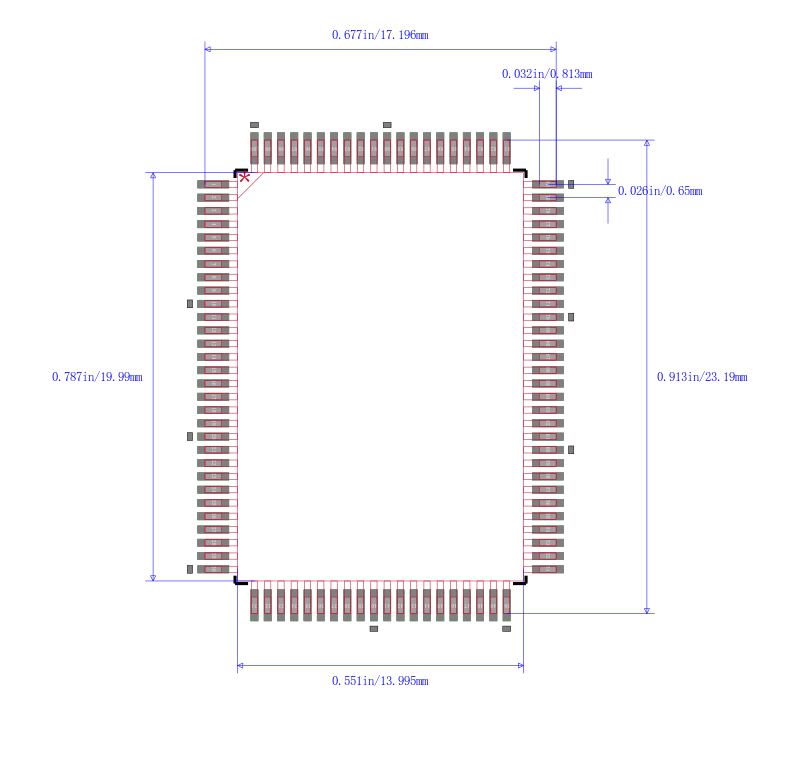

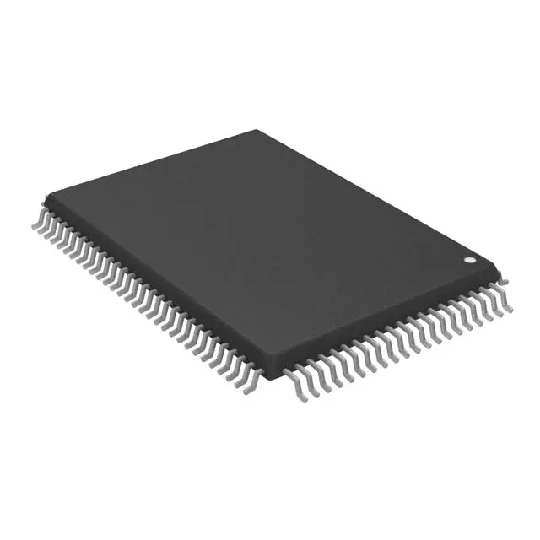

封装 BQFP-100
封装 BQFP-100
工作温度 -40℃ ~ 95℃
产品生命周期 Active
包装方式 Tray
制造应用 LCD panel for car and home general-purpose display
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
