固定电感器 1007 220uH 5850mOhms +/-10%Tol 40mA

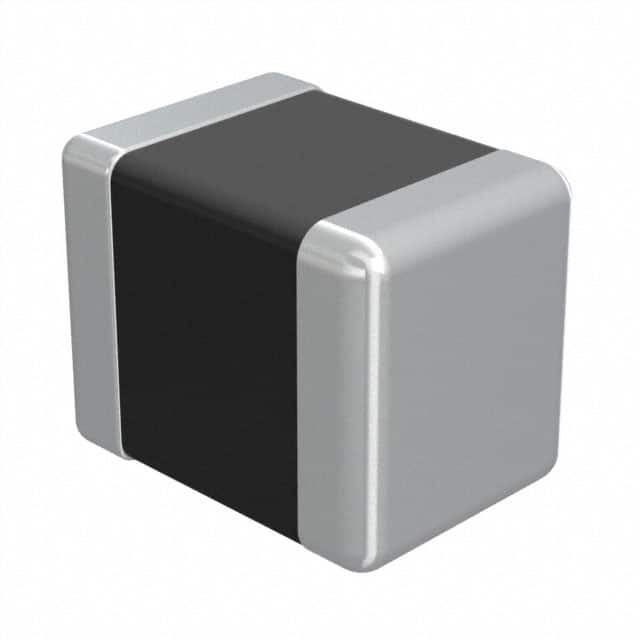

220µH Unshielded Wirewound Inductor 40mA 4.5Ohm 1007 2518 Metric
得捷:
FIXED IND 220UH 40MA 4.5 OHM SMD
立创商城:
220uH ±10% 40mA
贸泽:
固定电感器 1007 220uH 5850mOhms +/-10%Tol 40mA
艾睿:
Inductor General Purpose Chip Wirewound 220uH 10% 796KHz Ferrite 0.04A 5.85Ohm DCR 1007 T/R
Chip1Stop:
Inductor Chip Wirewound 220uH 10% 796KHz Ferrite 40mA 5.85Ohm DCR 1007 T/R
Verical:
Inductor General Purpose Chip Wirewound 220uH 10% 796KHz Ferrite 0.04A 5.85Ohm DCR 1007 T/R
Electro Sonic:
Inductor General Purpose Chip Wirewound 220uH 10% 796KHz Ferrite 0.04A 5.85Ohm DCR 1007 T/R
额定电流 40 mA
容差 ±10 %
无卤素状态 Halogen Free
电感 220 µH
自谐频率 5.5 MHz
产品系列 LB
屏蔽 No
电感公差 ±10 %
测试频率 796 kHz
电阻DC) 4.5 Ω
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 5.85 Ω
安装方式 Surface Mount
引脚数 2
封装 1007
长度 2.5 mm
宽度 1.8 mm
高度 1.8 mm
封装 1007
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
