2.2uH ±20% 260mA 编带

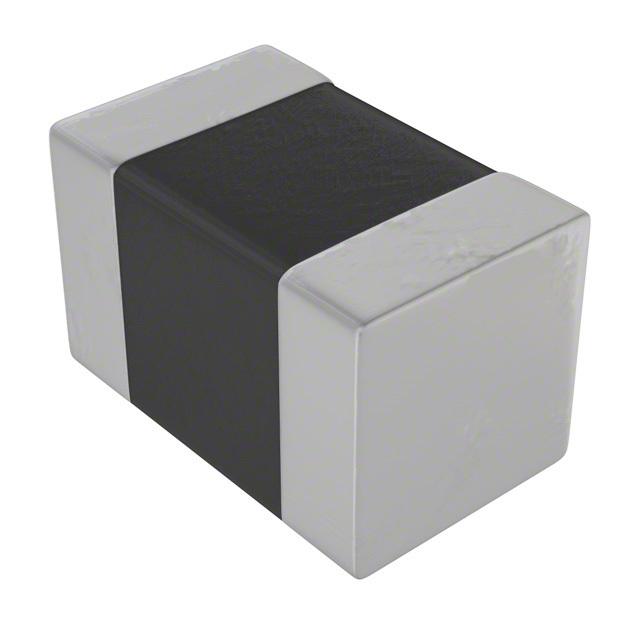

2.2µH Unshielded Wirewound Inductor 260mA 230mOhm 0805 2012 Metric
得捷:
FIXED IND 2.2UH 260MA 230MOHM SM
立创商城:
2.2uH ±20% 230mΩ
贸泽:
Fixed Inductors 0805 2.2uH 299mOhms +/-20%Tol 260mA
艾睿:
Inductor General Purpose Chip Wirewound 2.2uH 20% 7.96MHz Ferrite 0.26A 0.299Ohm DCR 0805 T/R
安富利:
Ind Chip Wirewound 2.2uH 20% 7.96MHz Ferrite 260mA 0805 T/R
Chip1Stop:
Ind Chip Wirewound 2.2uH 20% 7.96MHz Ferrite 260mA 0805 T/R
Verical:
Inductor General Purpose Chip Wirewound 2.2uH 20% 7.96MHz Ferrite 0.26A 0.299Ohm DCR 0805 T/R
Newark:
# TAIYO YUDEN LB2012T2R2M Surface Mount High Frequency Inductor, LB Series, 2.2 µH, 260 mA, 0805 [2012 Metric], Wirewound
Electro Sonic:
Inductor General Purpose Chip Wirewound 2.2uH 20% 7.96MHz Ferrite 0.26A 0.299Ohm DCR 0805 T/R
Win Source:
2.2μH Unshielded Wirewound Inductor 260mA 230 mOhm 0805 2012 Metric
额定电流 260 mA
容差 ±20 %
无卤素状态 Halogen Free
电感 2.2 µH
自谐频率 80 MHz
产品系列 LB
屏蔽 No
电感公差 ±20 %
测试频率 7.96 MHz
电阻DC) 230 mΩ
额定电流DC 260 mA
工作温度Max 105 ℃
工作温度Min 40 ℃
电阻DC Max 0.299 Ω
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 1.25 mm
封装公制 2012
封装 0805
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
