LBR2518T220K

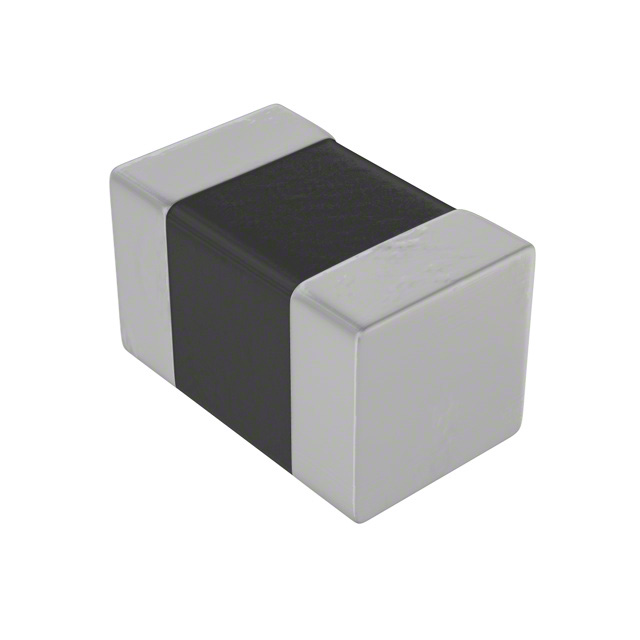

LBR2518T220K图片1

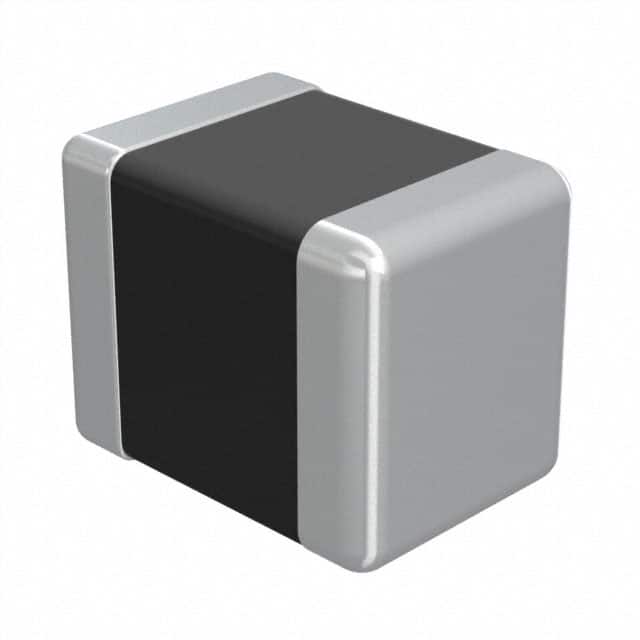

LBR2518T220K图片2
LBR2518T220K图片3
LBR2518T220K图片4
LBR2518T220K图片5
LBR2518T220K图片6
LBR2518T220K图片7
LBR2518T220K图片8
LBR2518T220K图片9
LBR2518T220K概述

2518 22uH ±10%

22µH Unshielded Wirewound Inductor 175mA 440mOhm 1007 2518 Metric


立创商城:
22uH ±10% 440mΩ


得捷:
FIXED IND 22UH 175MA 440MOHM SMD


艾睿:
Inductor General Purpose Chip Wirewound 22uH 10% 2.52MHz Ferrite 0.175A 0.572Ohm DCR 1007 T/R


Chip1Stop:
Inductor Chip Wirewound 22uH 10% 2.52MHz Ferrite 175mA 572mOhm DCR 1007 T/R


Verical:
Inductor General Purpose Chip Wirewound 22uH 10% 2.52MHz Ferrite 0.175A 0.572Ohm DCR 1007 T/R


Electro Sonic:
Inductor General Purpose Chip Wirewound 22uH 10% 2.52MHz Ferrite 0.175A 0.572Ohm DCR 1007 T/R


LBR2518T220K中文资料参数规格
技术参数

额定电流 175 mA

容差 ±10 %

无卤素状态 Halogen Free

电感 22 µH

自谐频率 19 MHz

产品系列 LB

电感公差 ±10 %

测试频率 2.52 MHz

电阻DC) 440 mΩ

工作温度Max 105 ℃

工作温度Min -40 ℃

电阻DC Max 0.572 Ω

封装参数

安装方式 Surface Mount

引脚数 2

封装 1007

外形尺寸

长度 2.5 mm

宽度 1.8 mm

高度 1.8 mm

封装 1007

物理参数

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 2000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

LBR2518T220K引脚图与封装图
LBR2518T220K引脚图
LBR2518T220K封装图
LBR2518T220K封装焊盘图
