LB3218T100K

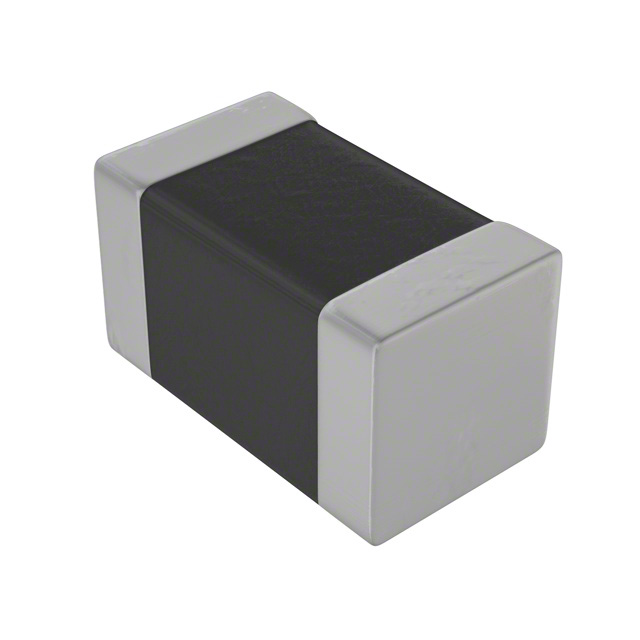

LB3218T100K图片1
LB3218T100K图片2
LB3218T100K图片3
LB3218T100K图片4
LB3218T100K图片5
LB3218T100K图片6
LB3218T100K图片7
LB3218T100K图片8
LB3218T100K图片9
LB3218T100K概述

3218 10uH ±10%

10µH Unshielded Wirewound Inductor 340mA 250mOhm 1207 3218 Metric


得捷:
FIXED IND 10UH 340MA 250MOHM SMD


立创商城:
10uH ±10% 340mA 325mΩ


艾睿:
Inductor General Purpose Chip Wirewound 10uH 10% 2.52MHz Ferrite 0.34A 0.325Ohm DCR 1207 T/R


Chip1Stop:
Inductor Chip Wirewound 10uH 10% 2.52MHz Ferrite 340mA 325mOhm DCR 1207 T/R


Verical:
Inductor General Purpose Chip Wirewound 10uH 10% 2.52MHz Ferrite 0.34A 0.325Ohm DCR 1207 T/R


Electro Sonic:
Inductor General Purpose Chip Wirewound 10uH 10% 2.52MHz Ferrite 0.34A 0.325Ohm DCR 1207 T/R


Win Source:
FIXED IND 10UH 340MA 250 MOHM


LB3218T100K中文资料参数规格
技术参数

额定电流 340 mA

容差 ±10 %

无卤素状态 Halogen Free

电感 10 µH

自谐频率 30 MHz

产品系列 LB

电感公差 ±10 %

测试频率 2.52 MHz

电阻DC) 250 mΩ

工作温度Max 105 ℃

工作温度Min -40 ℃

电阻DC Max 0.325 Ω

封装参数

安装方式 Surface Mount

引脚数 2

封装 3218

外形尺寸

长度 3.2 mm

宽度 1.8 mm

高度 1.8 mm

封装 3218

物理参数

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 2000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

LB3218T100K引脚图与封装图
LB3218T100K引脚图
LB3218T100K封装图
LB3218T100K封装焊盘图
在线购买LB3218T100K
型号: LB3218T100K
描述:3218 10uH ±10%
替代型号LB3218T100K
型号/品牌 代替类型 替代型号对比

LB3218T100K

Taiyo Yuden 太诱

当前型号

当前型号

L1207C100KPWST

基美

功能相似

LB3218T100K和L1207C100KPWST的区别
