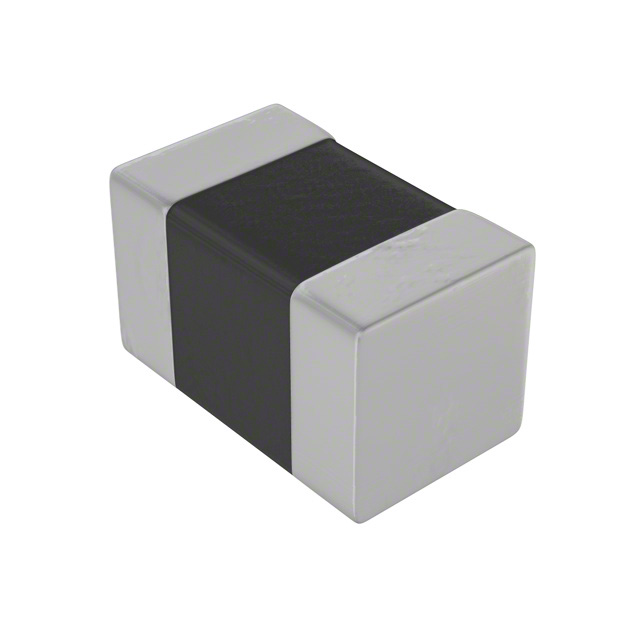

2518 4.7uH ±20%
4.7µH Unshielded Wirewound Inductor 235mA 100mOhm 1007 2518 Metric
立创商城:
4.7uH ±20% 235mA 100mΩ
得捷:
FIXED IND 4.7UH 235MA 100MOHM SM
艾睿:
Inductor General Purpose Chip Wirewound 4.7uH 20% 7.96MHz Ferrite 0.235A 0.13Ohm DCR 1007 T/R
Chip1Stop:
Ind Chip Wirewound 4.7uH 20% 7.96MHz Ferrite 235mA 1007 T/R
Verical:
Inductor General Purpose Chip Wirewound 4.7uH 20% 7.96MHz Ferrite 0.235A 0.13Ohm DCR 1007 T/R
Win Source:
4.7μH Unshielded Wirewound Inductor 235mA 100 mOhm 1007 2518 Metric
额定电流 235 mA
容差 ±20 %
无卤素状态 Halogen Free
电感 4.7 µH
自谐频率 46 MHz
产品系列 LB
电感公差 ±20 %
测试频率 7.96 MHz
电阻DC) 100 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.13 Ω
安装方式 Surface Mount
引脚数 2
封装 1007
长度 2.5 mm
宽度 1.8 mm
高度 1.8 mm
封装 1007
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
