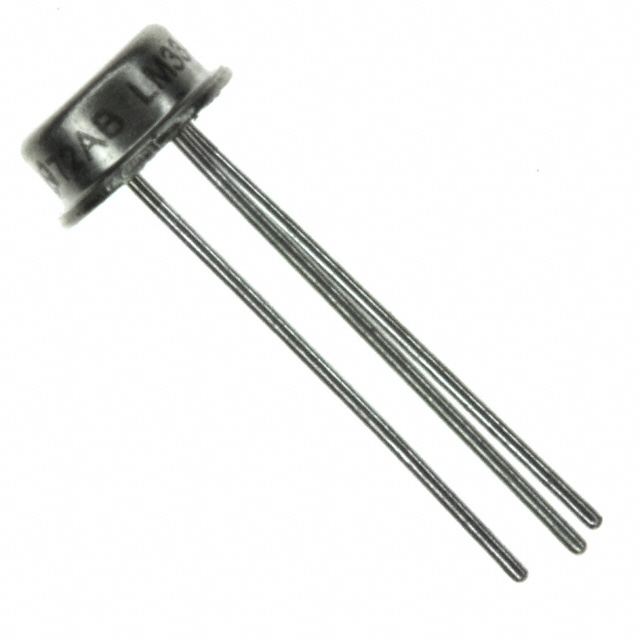

5.0 V 基准二极管 3-TO -40 to 125
Even in the event of large power supply variations, this voltage reference power management device from Texas Instruments can produce and maintain a precise DC voltage. With an output that has a voltage of 5 V, this is power management at its best. It has an initial accuracy of 1%. This voltage reference circuit supports shunt topology. By operating at a load regulation of 12mV you can provide a constant voltage at your output. This voltage reference circuit has an operating temperature range of -40 °C to 125 °C.
容差 ±1 %
输出接口数 1
输出电压 5 V
输出电流 10 mA
通道数 1
输出电压Max 5 V
输出电压Min 5 V
输出电流Max 10 mA
工作温度Max 150 ℃
工作温度Min -55 ℃
精度 1 %
安装方式 Through Hole
引脚数 3
封装 TO-46
长度 4.699 mm
宽度 5.44 mm
封装 TO-46
工作温度 -55℃ ~ 125℃ TA
温度系数 ±20 ppm/℃
产品生命周期 Active
包装方式 Box
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM136AH-5.0 TI 德州仪器 | 当前型号 | 当前型号 |
8418002XA 德州仪器 | 完全替代 | LM136AH-5.0和8418002XA的区别 |
LM336Z-5.0/NOPB 德州仪器 | 类似代替 | LM136AH-5.0和LM336Z-5.0/NOPB的区别 |
LM136H-5.0/NOPB 德州仪器 | 类似代替 | LM136AH-5.0和LM136H-5.0/NOPB的区别 |
