LC749000AT-8B15H

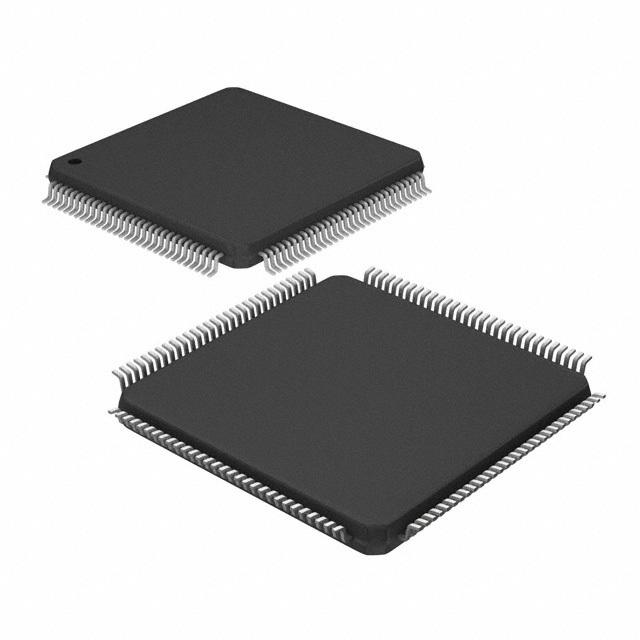

LCD Processor for Small Size Display, TQFP120 14x14 / TQFP120, 450-JTRAY

LC74900 is a highly integrated multi-purpose LCD Panel up to WVGA controller processing analog and digital video signal. It contains A/D converter, video decorder, De-interlacer/Scaler, and picture improvement.

Features

---

 |

.

Video Input/Output

.

YC separation video decoder

.

De-interlacer and Scaler

.

Picture Improvements

.

Panel interface

24bit RGB output and 18bit RGB output with dithering process.

Pulse Width Modulation for automatic LED backlight control.

Timing conroller for LCD driver with horizontal or vertical reversing signals.

Pin swapping : replace output pin assignment of the RGB channel or bit.

.

On Screen Display

.

EEPROM booting

.

Parallel data outputs, panel interface and video decorder output

.

System Controller Interface
