LM336Z25

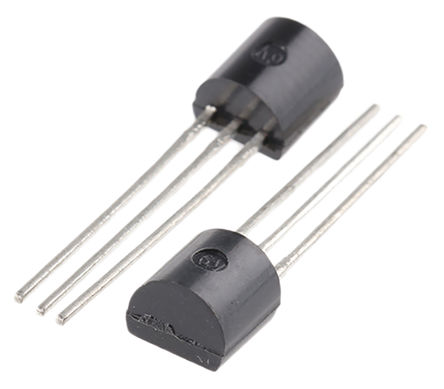

FAIRCHILD SEMICONDUCTOR  LM336Z25  电压基准, 精密, 分流 - 固定, LM336Z系列, 2.49V, TO-226AA-3

The is precision programmable Shunt Regulator feature easily trimmed for minimum temperature drift. The monolithic IC voltage reference operates as a low temperature coefficient 2.5V zener with 0.2R dynamic impedance. A third terminal on the LM336Z25 allows the reference voltage and temperature coefficient to be trimmed. LM336Z25 is useful as a precision 2.5V low-voltage reference for digital voltmeters, power supplies or OP-AMP circuitry. The 2.5V makes it convenient to obtain a stable reference from low-voltage supplies. Further, since the LM336Z25 operates as a shunt regulator, it can be used as either a positive or negative voltage reference.

.

Low temperature coefficient

.

4mV Typical guaranteed temperature stability

.

0.2R Dynamic impedance
