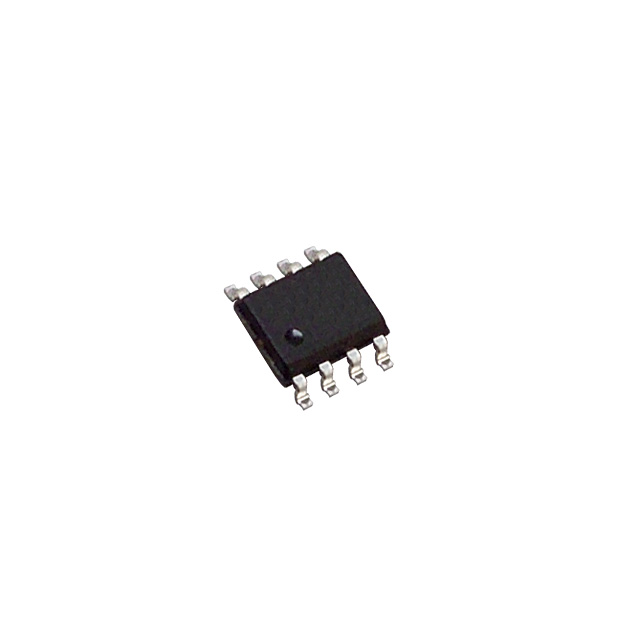

TEXAS INSTRUMENTS LM285DR-2-5 电压基准, 微功率, 分流 - 固定, LM285系列, 2.5V, SOIC-8
description
These micropower two-terminal band-gap voltage references operate over a 20-µA to 20-mA current range and feature exceptionally low dynamic impedance and good temperature stability. On-chip trimming provides tight voltage tolerance. The band-gap reference for these devices has low noise and long-term stability.
Operating Current Range...20 µA to 20 mA
1.5% and 3% Initial Voltage Tolerance
Reference Impedance
− LM385...1 ΩMax at 25°C
− All Devices. . . 1.5 ΩMax Over Full Temperature Range
Very Low Power Consumption
Applications
− Portable Meter References
− Portable Test Instruments
− Battery-Operated Systems
− Current-Loop Instrumentation
− Panel Meters
Interchangeable With Industry-Standard LM285-2.5 and LM385-2.5
容差 ±1.5 %
输出电压 2.5 V
输出电流 20 mA
供电电流 20.0 mA
通道数 1
针脚数 8
输出电压Max 2.5 V
输出电压Min 2.5 V
输出电流Max 20 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±1.5 %
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 4.9 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃
温度系数 ±20 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM285DR-2-5 TI 德州仪器 | 当前型号 | 当前型号 |
LM285D-2-5 德州仪器 | 完全替代 | LM285DR-2-5和LM285D-2-5的区别 |
LM385BPWR-2-5 德州仪器 | 完全替代 | LM285DR-2-5和LM385BPWR-2-5的区别 |
LM285DE4-2-5 德州仪器 | 完全替代 | LM285DR-2-5和LM285DE4-2-5的区别 |
