LSZ51C

HONEYWELL  LSZ51C  开关传动装置

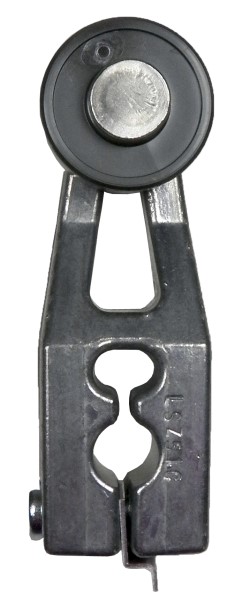

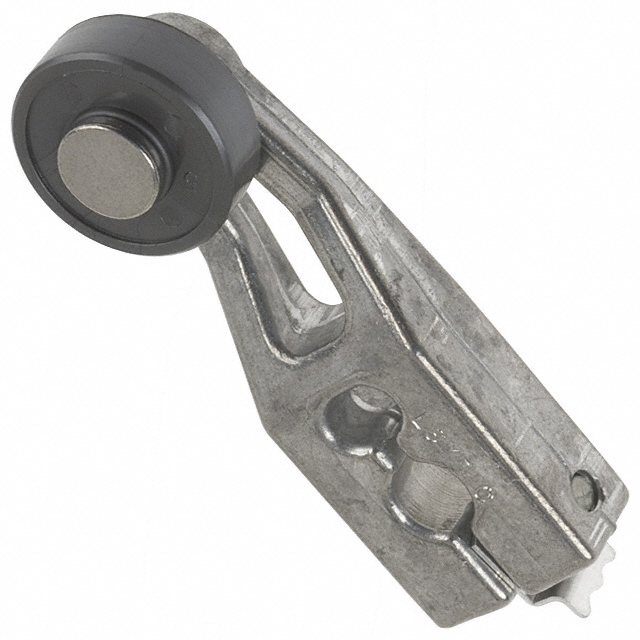

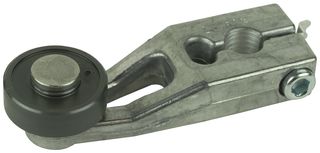

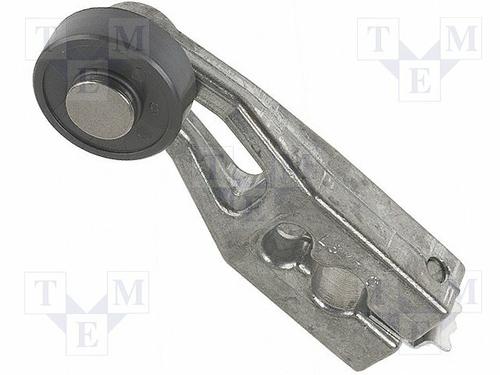

Lever, Nylon Material, 0.75 in. Diameter, 0.25 in. Width

The HDLS limit switches are built to last and are designed for easy application installation. Its unique all-metal drive train provides consistent operating characteristics and lasts longer than drive trains with plastic parts. The HDLS offers sintered bronze bearings on 303 stainless steel operating shafts for a long, reliable mechanical life. Whether single or double pole, plug in or non-plug in, they all offer the same actuator lever tracking dimensions for the ultimate in design flexibility. All this is packaged in a rugged corrosion-resistant zinc head and body that is phosphate treated and epoxy finished.

** Features**

* Wide Variety of Operating Heads

* Captive Head and Body Screws

* One Piece Flat Base to Receptacle Seal Gasket

** Specifications**

* UL Recognized, File #E37138

* CSA Certified, File #LR57326

* Sealing: NEMA 1, 3, 4, 6, 13, 4X, 6P

* CE Certified
