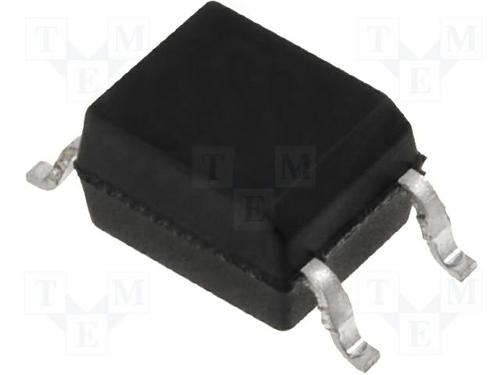

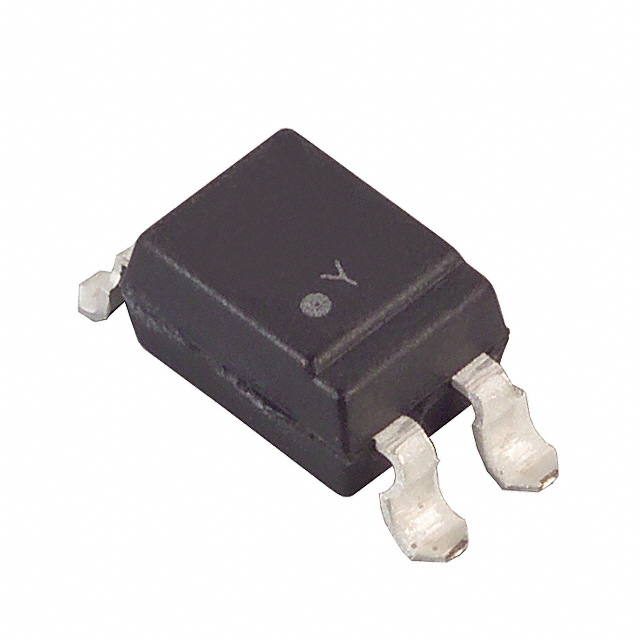

LTV-355T

LTV-355T

FEATURES

* High current transfer ratio

  CTR : MIN. 600% at IF = 1mA, VCE = 2V

* Isolation voltage between input and output

  Viso = 3,750Vrms

* Employs double transfer mold technology

* Subminiature type

  The volume is smaller than that of conventional DIP type by as far as 30%

* Mini-flat package : 2.0mm profile : LTV-355T

* UL approved No. E113898

* CUL approved No. E113898 , 01SC19287

* CSA approved No. 1243207

* FIMKO approved No. FI-16420

* NEMKO approved No. P01100403

* DEMKO approved No. 310475-01

* SEMKO approved No. 0109173 / 01-08

* VDE approved No. 094722

APPLICATIONS

* Hybrid substrates that require high density mounting.

* Programmable controllers
