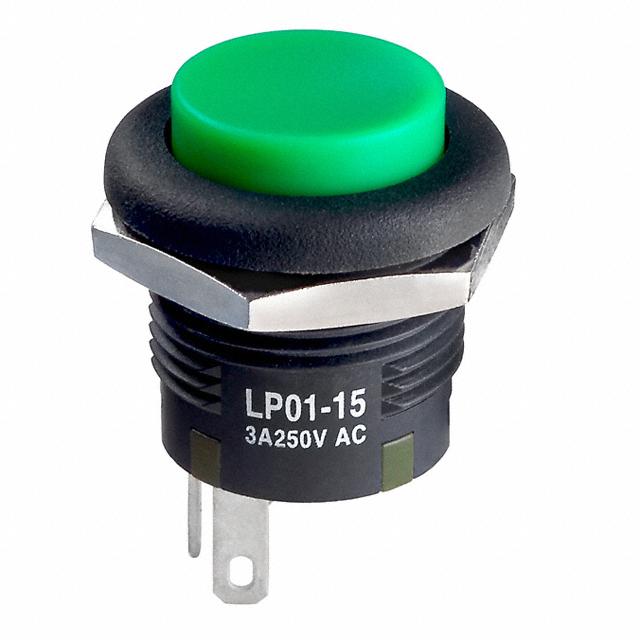

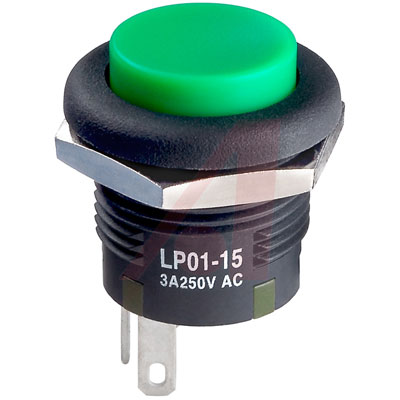

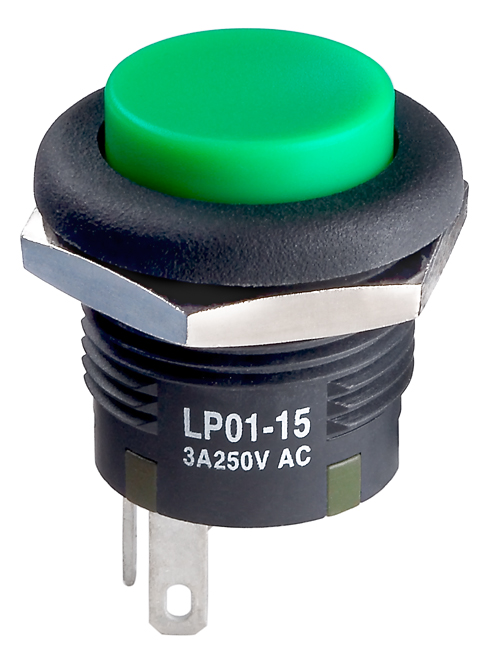

NKK SWITCHES LP0115CCKW01F 按钮开关, 非发光, SPDT, 3A, 绿色
Series LP01 short body pushbuttons meet RoHS directives restricting use of hazardous material and are suitable for lead-free soldering thanks to use of heat resistant resin components.
艾睿:
Turn on and off portions of your circuit design with the aid of this LP0115CCKW01F push button switch manufactured from NKK Switches. It has a SPDT configuration. This device has a maximum current rating of 3 A @ 250VAC 30VDC. This push switch has a minimum operating temperature of -25 °C and a maximum of 70 °C. The LP0115CCKW01F push switch has a quick connect/solder lug termination style. This product is 20 mm long, 26.8 mm tall and 20 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.
Allied Electronics:
Switch; P/B; SPDT; ON-ON; Round; Bushing Mnt; Non-Illuminated; Green Cap; 3A; 125VAC; QC
Chip1Stop:
Switch Push Button ON ON SPDT Round Button 3A 250VAC 30VDC Momentary Contact Quick Connect/Solder Lug Panel Mount
Verical:
Switch Push Button ON ON SPDT Round Button 3A 250VAC 30VDC Momentary Contact Panel Mount Quick Connect/Solder Lug
Newark:
# NKK SWITCHES LP0115CCKW01F Pushbutton Switch, SPDT, On-On, 250 V, 30 V, 3 A, Quick Connect, Solder
Powell:
SHORT BODY PUSHBUTTON/ILLUMINATED/PANEL MOUNT
